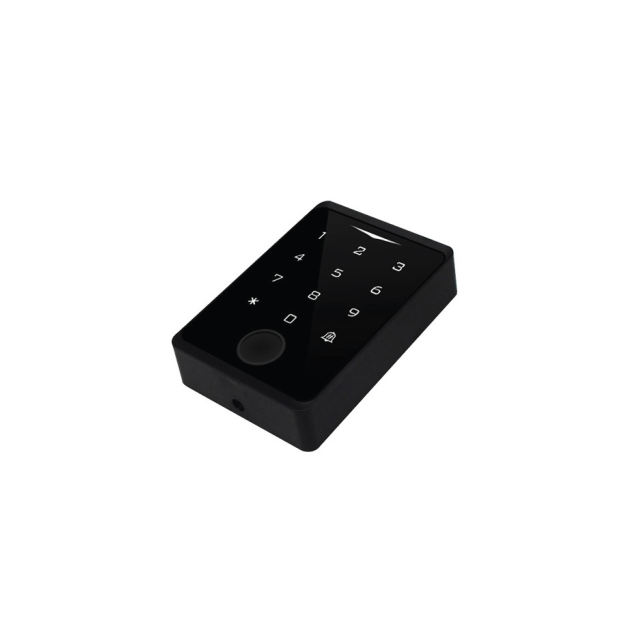

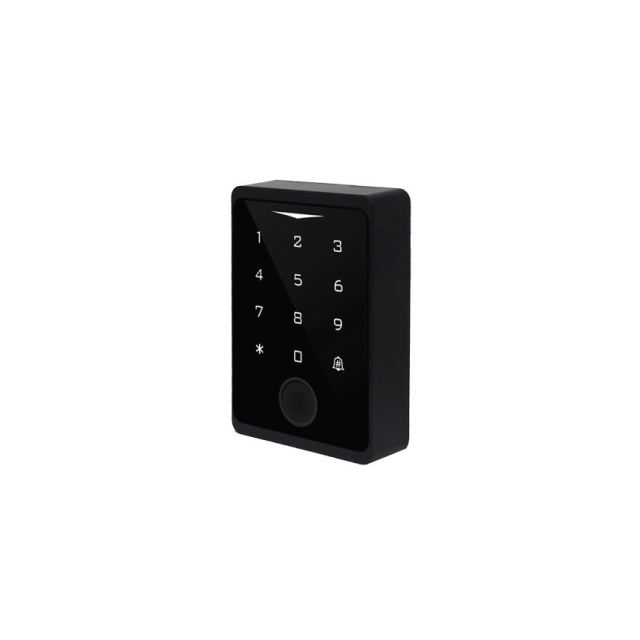

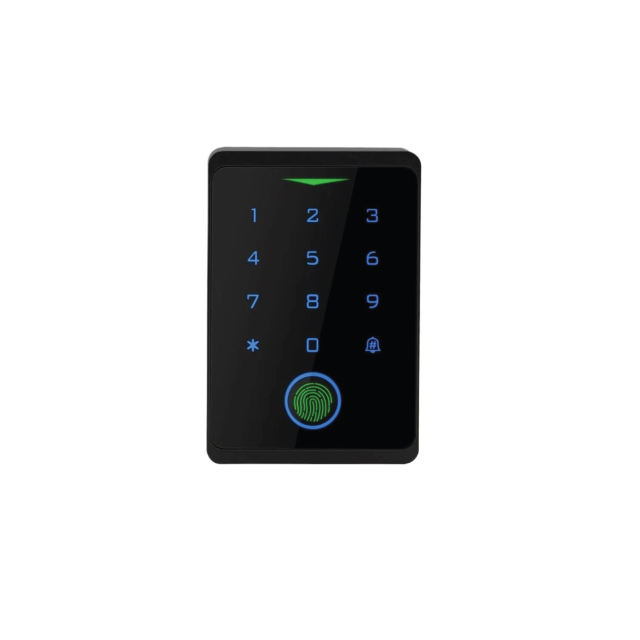

WIFI Touch Keypad with Doorbell(WIFIEM) | XAC-MSLCF1

Name: WIFI Touch Keypad with Doorbell(WIFIEM) | XAC-MSLCF1
Brand: Viskou | One-Stop Tech Solutions for a Smarter Future
SKU: VMMC000020
Price: 124 MYR
Availability: InStock

XAC-MSLCF1

- Touch keypad with doorbell.
- Integrated alarm & Buzzer output.
- Card Type:125KHz EM Card/13.56Mhz Mifare Card.
- Backlit keypad,can set automatic OFF after 20 seconds.

RM124.00 ~~RM248.00~~

(Excluding Taxes)

Quantity

-

+

152 In Stock, Puchong

6 In Stock, Johor Bahru

13 In Stock, Penang (Perai)

7 In Stock, Penang (Gelugor)

7 In Stock, KK

Add to Favorite Items

Description

XAC-MSLCF1
WIFI Touch Keypad with Doorbell(WIFIEM)

Product Sepcifications

Parameters	Specifications
User Capacity	Hardware User: 15000 App User: 500
Common User	9888 PIN/Card Users
Panic User	2
Visitor User	10
Fingerprint User	500
PIN Length	4-6 digits
Idle Current	≤60mA
Active Current	≤150mA
Proximity Card Reader	EM Card (Mifare for Optional)
Radio Technology	125KHz
Read Range	2-6cm
Wiring Connections	Relay output, exit button, alarm, door contact, Wiegand input/output
Relay	One (NO, NC, Common)
Adjustable Relay Output Time	0~99 Seconds (5 seconds default)
Lock Output Load	2 Amp Maximum
Wiegand Interface	EM card version: Wiegand 26~44 bits input & output (Factory default: Wiegand 26bits) Mifare card version:Wiegand 26~44 bits,56bits,58bits input & output (Factory default: Wiegand 34bits)
PIN Output	4 bits,8bits (ASCII),10 digits Virtual Number(Factory default:4bits)
Environment	Meets IP66
Operating Temperature	(-30°C ~ 60°C) (-22°F ~ 140°F)
Operating Humidity	0%RH ~ 98%RH
Physical	Zinc-Alloy
Colou	Sliver & Black
Dimensions	L145 x W68 x H25 (mm)

Datasheet

Download Datasheet
