Fingerprint Access Control Terminal | DS-K1T804AMF/DS-K1T804AEF

DS-K1T804AMF / AEF
- Built-in card reader for Mifare1 card
- Supports Wiegand interface
- Alarm input and output interface
RM285.00 RM513.00
(Excluding Taxes)
    Please select the information you wantX
  • Model:
    DS-K1T804AEF (EM card)
    DS-K1T804AMF (Mifare card)
Quantity
-
+
110 In Stock 179 In Stock, Puchong Warehouse
9 In Stock, Johor Bahru Warehouse
12 In Stock, Penang Warehouse
0 In Stock, KK Warehouse
0 In Stock, Warehouse 5
, Puchong Warehouse
179 In Stock, Puchong
9 In Stock, Johor Bahru
12 In Stock, Penang
  • Description

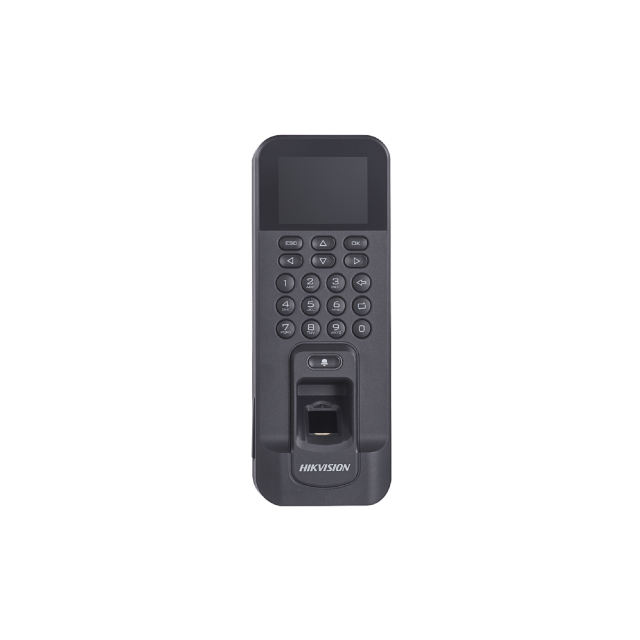

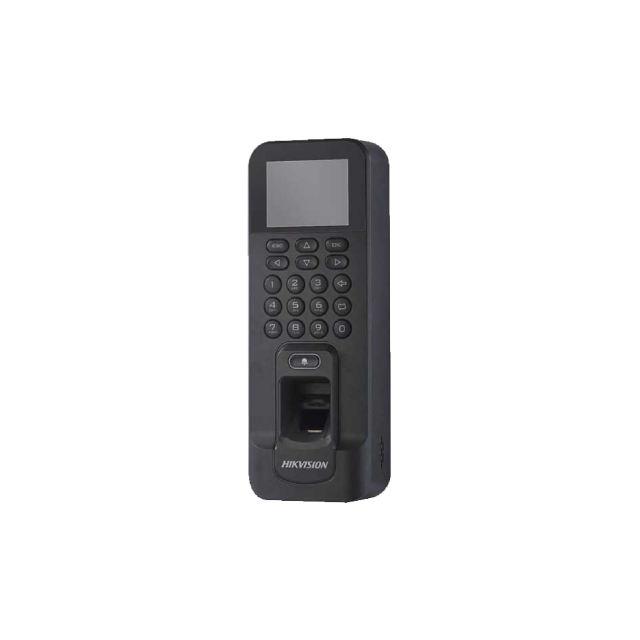

DS-K1T804AMF
Fingerprint Access Control Terminal
  • 3,000 fingerprints, 3,000 cards and 100,000 events storage
  • Built-in card reader for Mifare1 card
  • Communication via TCP/TP and Wi-Fi
  • Supports Wiegand interface
  • Alarm input and output interface
  • ISUP5.0,ISAPI

Product Specifications

Operation system
Linux
Display Size
2.4-inch
Resolution
320 × 240
Type
LCD-TFT display screen
Audio output
1 loudspeaker, 1 buzzer
Wired network
TCP/IP, 10/100Mbps, self-adaptive
Wi-Fi
Support
Card capacity
3000
Fingerprint capacity
3000
Event capacity
100,000
Card type
Mifare 1 card
Card reading distance
0 to 4.5 cm
Fingerprint module
Optical fingerprint module
Power supply
12 VDC/1 A
Working temperature
-10 °C to +55 °C
Dimensions
205 mm × 76.5 mm × 37 mm (8.07" × 3.01" × 1.46")
Installation
Surface mounting


Download

DS-K1T804AMF Datasheet

DS-K1T804AEF Datasheet
