Value Magnetic Locks | DS-K4H255S

Name: Value Magnetic Locks | DS-K4H255S
Brand: Viskou | One-Stop Tech Solutions for a Smarter Future
SKU: 302920422
Price: 90 MYR
Availability: OutOfStock

DS-K4H255S

- Suitable for wooden door, glass door, metal door
- Magnetic lock supports up to 272 kg (600 Lbs) of thrust
- Power supply can be 12 VDC or 24 VDC, (default voltage is 12 VDC)

RM90.00 ~~RM180.00~~

(Excluding Taxes)

Quantity

0 In Stock, Puchong

0 In Stock, Johor Bahru

0 In Stock, Penang (Perai)

0 In Stock, Penang (Gelugor)

0 In Stock, KK

Add to Favorite Items

Description

DS-K4H255S

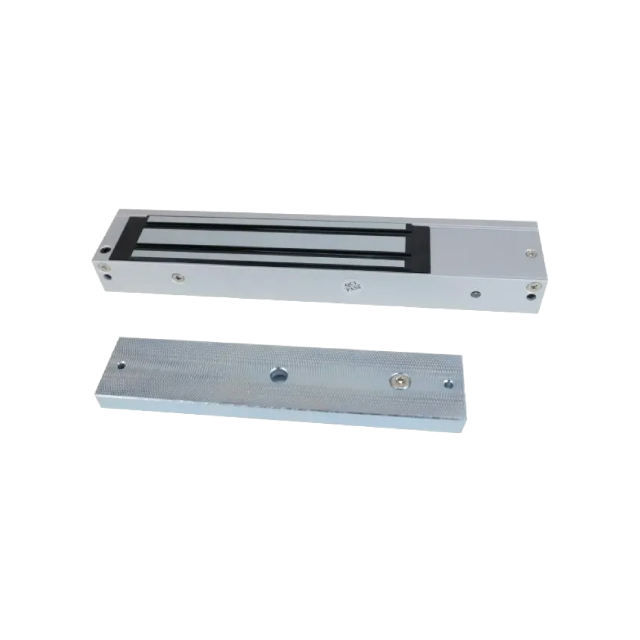

Value Magnetic Locks

Magnetic lock supports up to 272 kg (600 Lbs) of thrust
Power supply can be 12 VDC or 24 VDC, (default voltage is 12 VDC)
Suitable for wooden door, glass door, metal door
High strength material，anodized aluminum housing
Magnetic lock , completely using electromagnetic suction work
Abrasion-proof materials

Specification

Power Supply	12 VDC, 470 mA - 24 VDC, 235 mA
Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity	0~90% (Relative Humidity)

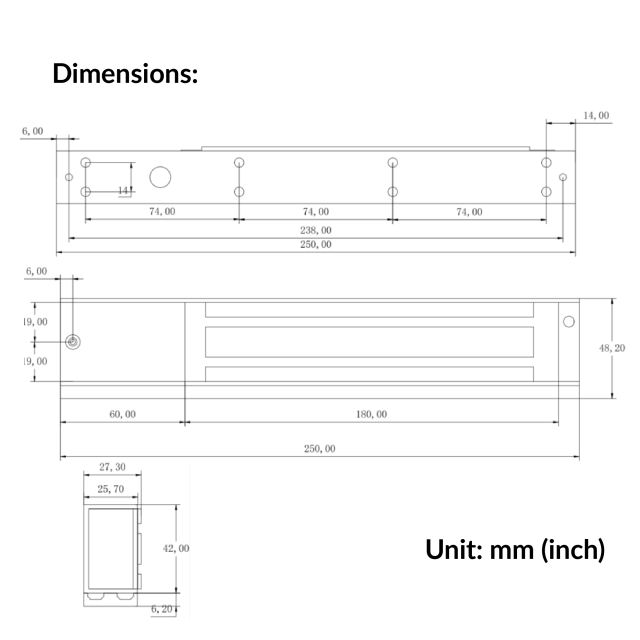

Dimensions	Lock Body: L×W×H: 250 mm × 28 mm × 48 mm (9.8" × 1.1\" × 1.9\") Armature Plate: L×W×H: 180 mm × 38 mm × 12 mm (7.1 × 1.5\" × 0.5\")"
Weight	1.9 kg (4.2 Lbs)
Material	Shell: hard Anodizing Electroplating Operated Lock Body: eco-friendly Zinc Electroplating Operated Armature Plate: eco-friendly Zinc Electroplating Operated
Door Type	Wooden Door, Glass Door, Metal Door
Thrust	Max. 272 kg (600 Lbs)
Unlock Method	Current Interruption
