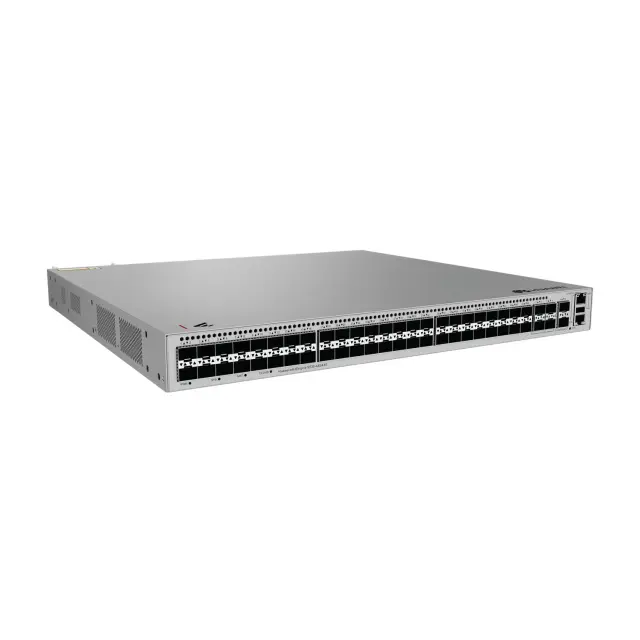

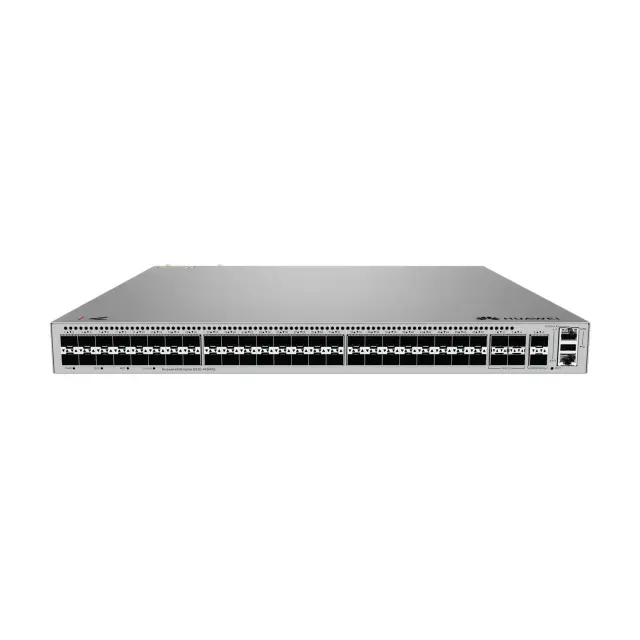

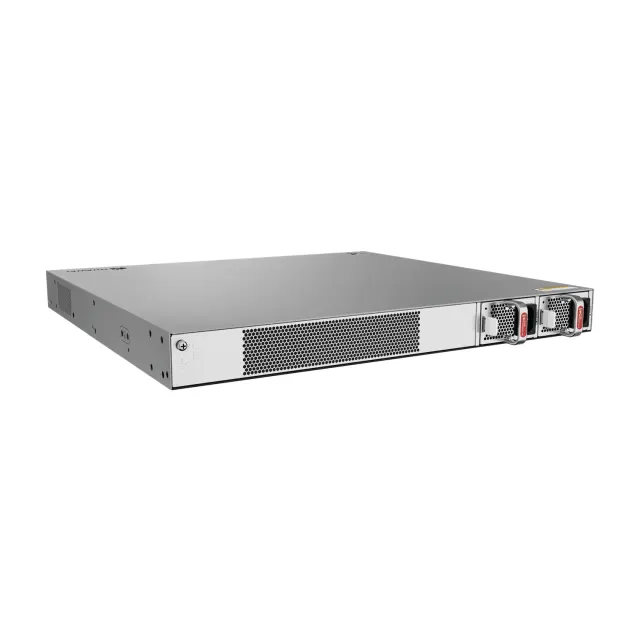

24-Port Gigabit L3 Managed Switch | S530-48S4XE

Name: 24-Port Gigabit L3 Managed Switch | S530-48S4XE
Brand: Viskou | One-Stop Tech Solutions for a Smarter Future
SKU: 98012558
Price: 9999 MYR
Availability: InStock

S530-48S4XE

- Switching capacity: 224 Gbps
- Port: Downlink: 48 x GE SFP ports,Uplink: 4 x 10GE SFP+ port,2 x 10 GE stack ports

RM9,999.00 ~~RM9,999.00~~

(Excluding Taxes)

Quantity

-

+

5 In Stock, Puchong

0 In Stock, Johor Bahru

0 In Stock, Penang

0 In Stock, KK

Add to Favorite Items

Description

S530-48S4XE
24-Port Gigabit L3 Managed Switch

Switching capacity: 224 Gbps
Port: Downlink: 48 x GE SFP ports,Uplink: 4 x 10GE SFP+ port,2 x 10 GE stack ports
4094 VLANs,Ethernet switching,LLDP,Multicast,IP routing,IPv6 features,QoS/ACL,Cloud management,Intelligent stack 1+1 power supply backup

Product Specifications

Switching capacity	224 Gbps
Packet forwarding	168 Mpps
Fixed port	48 x GE SFP ports, 4 x 10 GE SFP+ ports, 2 x 10 GE stack ports
MAC address table	32K MAC entries(MAX)
Chassis dimensions (H x W x D)	43.6 mm x 442.0 mm x 420.0 mm
Chassis height	1 U
Weight in full configuration (including packaging materials)	8.3 kg (18.3 Ib)
Power module type	80 W AC power modules 180 W AC power modules 1200 W AC power modules
Rated input voltage	AC input: 100 V AC to 240 V AC; 50/60 Hz High-voltage DC input: 240 V DC DC input: –48 V DC to –60 V DC
Input voltage range	AC input: 90 V AC to 290 V AC; 45 Hz - 65 Hz High-voltage DC input: 190 V DC to 290 V DC DC input: -38.4 V DC to – 72 V DC
Maximum power consumption	96.40 W (with two 80 W AC power modules) 104.70 W (with two 180 W AC power modules) 130.05 W (with two 1200 W DC power modules)
Noise	Sound power at normal temperature: 43.8 dB (A) Sound pressure at normal temperature: 31.8 dB (A)
Long-term operating temperature	-5 °C to +50 °C
Storage temperature	-40 °C to +70 °C
Relative humidity	5% RH to 95% RH (non- condensing)
Power port surge protection	Differential mode: ±6 kV Common mode: ±6 kV
Heat dissipation mode	Air cooling, intelligent fan speed adjustment

Datasheet

Download Datasheet
