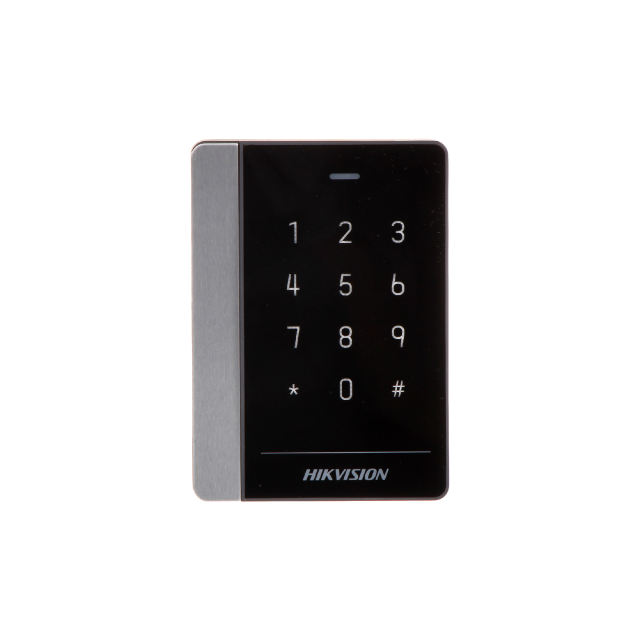

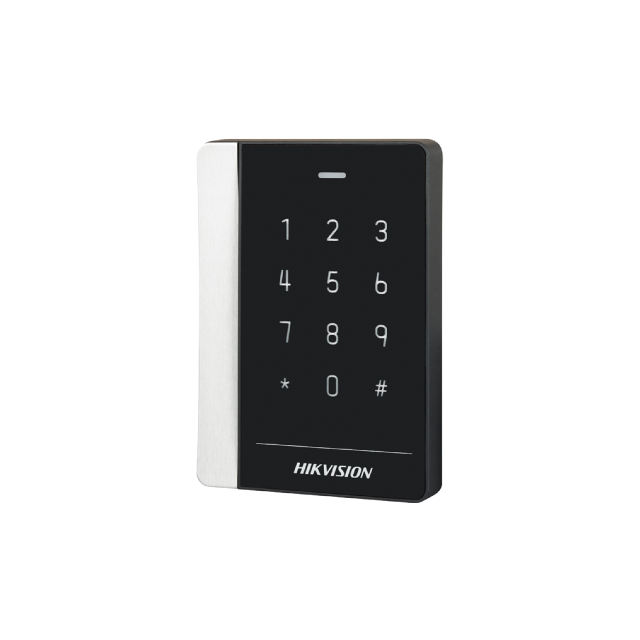

Card Reader With Keypad | DS-K1102AEK
- Keypad with 12 keys
- Built-in audible beeper
- Supports reading EM card
- RS-485 and Wiegand (W26/ W34) protocol
Authentication | Card reading frequency | 125 KHz |
General | Power supply | 12 VDC, 500 mA |
Power consumption | ≤ 2 W | |
Working temperature | -20 °C to 65 °C (-4 °F to 149 °F) | |
Working humidity | 10% to 90% (no condensing) | |
Dimensions | 121 mm × 86.5 mm × 14 mm (4.76" × 3.41" × 0.55") | |
Installation | Applied for 86 & 120 gang box | |
Weight | ≤ 0.14 kg (0.3 lb) | |
Keypad | Keypad with 12 keys (0 to 9, *, #) | |
Buzzer | Beeper | |
Function | ID settings | via DIP switch |
