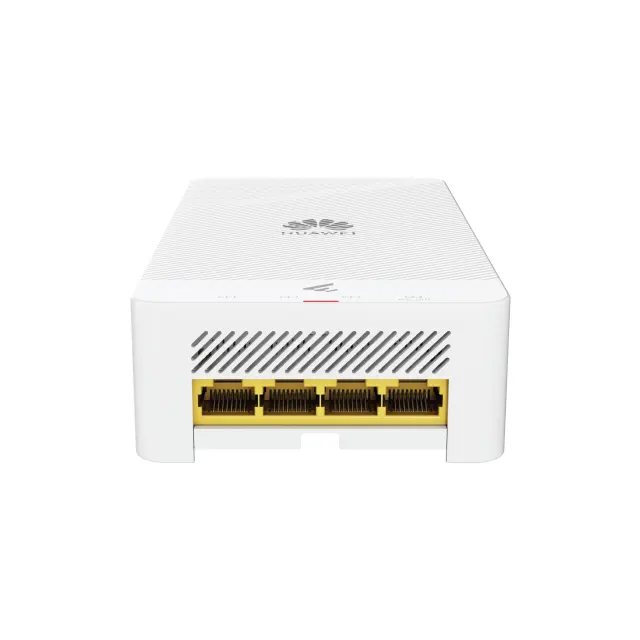

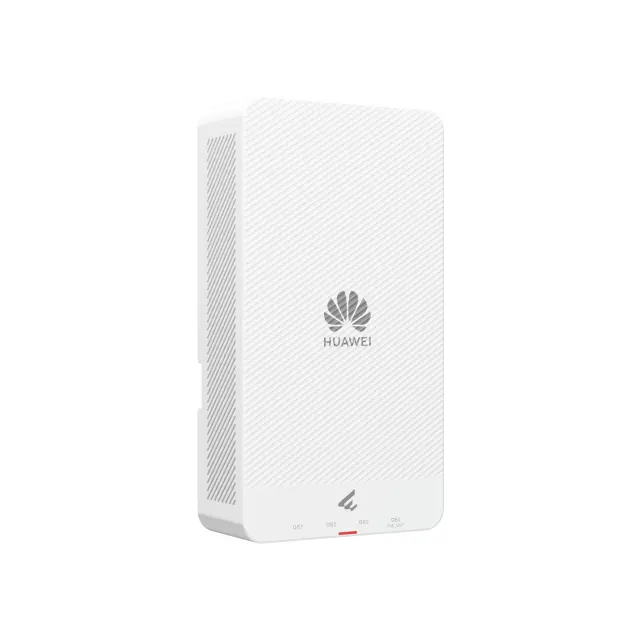

AX3000 Wi-Fi 6 Dual Band Multi-Port Wall Plate AP | AP266

Name: AX3000 Wi-Fi 6 Dual Band Multi-Port Wall Plate AP | AP266
Brand: Viskou | One-Stop Tech Solutions for a Smarter Future
SKU: 50087274
Price: 1002 MYR
Availability: InStock

AP266

- Management by HUAWEI eKit App
- Speed: 575Mbps at 2.4GHz, 2.4Gbps at 5GHz
- PoE power supply: in compliance with IEEE 802.3af
- MU-MIMO,Smart Antenna,Automatic Radio Calibration,Cloud Management

RM1,002.00 ~~RM2,004.00~~

(Excluding Taxes)

Quantity

-

+

11 In Stock, Puchong

2 In Stock, Johor Bahru

0 In Stock, Penang

2 In Stock, KK

Add to Favorite Items

Description

AP266
AX3000 Wi-Fi 6 Dual Band Multi-Port Wall Plate AP

Management by HUAWEI eKit App
Speed: 575Mbps at 2.4GHz, 2.4Gbps at 5GHz
PoE power supply: in compliance with IEEE 802.3af
MU-MIMO,Smart Antenna,Automatic Radio Calibration,Cloud Management

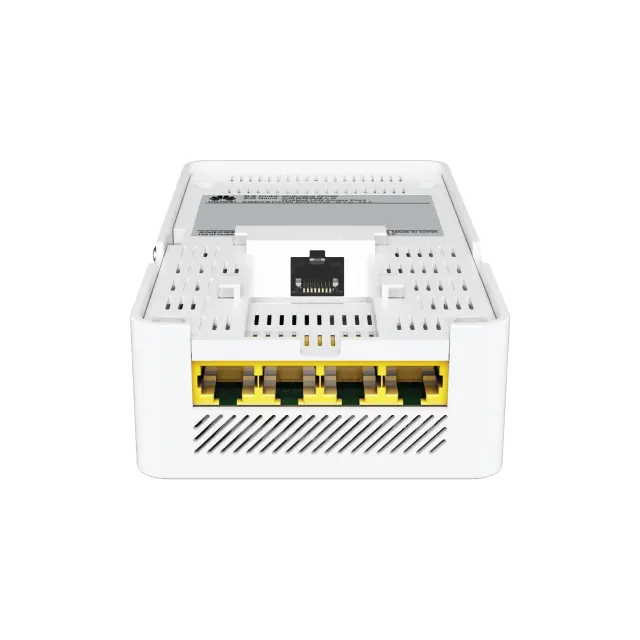

Port: Uplink 1 x 10M/100M/GE RJ45 port, Downlink 3 x 10M/100M/GE RJ45 ports,1 x 10M/100M/GE RJ45 PoE out

Product Sepcifications

Technical specifications	Dimensions (W x H x D)	86 mm x 160 mm x 38 mm
	Weight	0.23 kg
	Port	Uplink: 1 x 10M/100M/GE electrical port Downlink: 4 x 10M/100M/GE electrical ports (one supporting PoE OUT) NOTE : The uplink electrical port supports PoE IN.
	LED indicator	Indicate the power-on, startup, running, alarm, and fault states of the system.
Power specifications	Power input	PoE power supply: in compliance with IEEE 802.3
Power specifications	Maximum power consumption	9.4 W (excluding PoE OUT) NOTE : The actual maximum power consumption depends on local laws and regulations.
Environmental specifications	Operating temperature	0°C to 40°C (From 1800 m to 5000 m, the maximum temperature of the device decreases by 1°C for every 300 m increase in altitude.) NOTE : The temperature on part of the AP shell may be higher than its operating temperature upper limit. The AP's performance will not be affected as long as the shell temperature complies with the safety standards.
	Storage temperature	–40°C to +70°C
	Operating humidity	5% to 95% (non-condensing)
	Altitude	–60 m to +5000 m
	Atmospheric pressure	53 kPa to 106 kPa
Radio Specifications	Antenna type	Built-in directional antennas

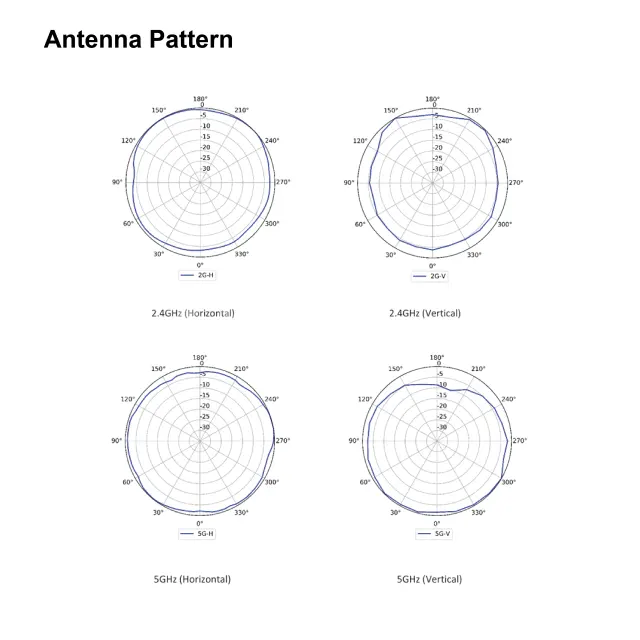

	Antenna gain	2.4 GHz: 4 dBi 5 GHz: 4 dBi NOTE : The preceding gains are the peak gains of a single antenna.
	Maximum quantity of SSIDs	16
	Maximum number of access STAs	128 NOTE : The actual number of users varies according to the environment.
	Maximum transmit power	2.4 GHz: 23 dBm (combined power) 5 GHz: 23 dBm (combined power) NOTE The actual transmit power varies according to local laws and regulations.
	Power adjustment increment	1 dBm

Datasheet

Download Datasheet
