BE14000 Wi-Fi 7 Tri-Band 5GE Settled AP | AP673

Name: BE14000 Wi-Fi 7 Tri-Band 5GE Settled AP | AP673
Brand: Viskou | One-Stop Tech Solutions for a Smarter Future
SKU: 50087291
Price: 2121 MYR
Availability: InStock

AP673

- Management by HUAWEI eKit App
- Speed: 690Mbps at 2.4GHz, 1.44Gbps at 5GHz, 11.53Gbps at 6GHz
- MU-MIMO,Smart Antenna,Automatic Radio Calibration,Cloud Management
- Power input: DC: 12 V ± 10% OR PoE power supply: in compliance with 802.3at/af

RM2,121.00 ~~RM4,242.00~~

(Excluding Taxes)

Quantity

-

+

65 In Stock, Puchong

5 In Stock, Johor Bahru

5 In Stock, Penang

5 In Stock, KK

Add to Favorite Items

Description

AP673
BE14000 Wi-Fi 7 Tri-Band 5GE Settled AP

Management by HUAWEI eKit App
Speed: 690Mbps at 2.4GHz, 1.44Gbps at 5GHz, 11.53Gbps at 6GHz
MU-MIMO,Smart Antenna,Automatic Radio Calibration,Cloud Management
Power input: DC: 12 V ± 10% OR PoE power supply: in compliance with 802.3at/af
Port: 1 x 100M/GE/2.5GE/5GE RJ45 Port,1 x 10M/100M/GE RJ45 port, 1 x USB port

Product Specifications

Technical specifications	Dimensions (diameter x length)	Φ220 mm x 45 mm
	Port type	1 x 100M/GE/2.5GE/5GE electrical port 1 x 10M/100M/GE electrical port 1 x USB port NOTE : The 5GE electrical port supports PoE IN.
	LED indicator	Indicates the power-on, startup, running, alarm, and fault states of the system.
Power specifications	Power input	DC: 12 V ± 10% PoE power supply: in compliance with 802.3at/af NOTE : When working in 802.3af power supply mode, the AP is restricted in functions. For example, the USB port is unavailable. For details, see the Quick Information Check website.
Power specifications	Maximum power consumption	21.1 W (excluding USB) NOTE : The actual maximum power consumption depends on local laws and regulations.
Environmental specifications	Operating temperature	–10°C to +50°C NOTE : The temperature on part of the AP shell may be higher than its operating temperature upper limit. The AP's performance will not be affected as long as the shell temperature complies with the safety standards.
	Storage temperature	–40°C to +70°C
	Operating humidity	5% to 95% (non-condensing)
	Altitude	–60 m to +5000 m
	Atmospheric pressure	53 kPa to 106 kPa
Radio Specifications	Antenna type	Built-in smart antennas

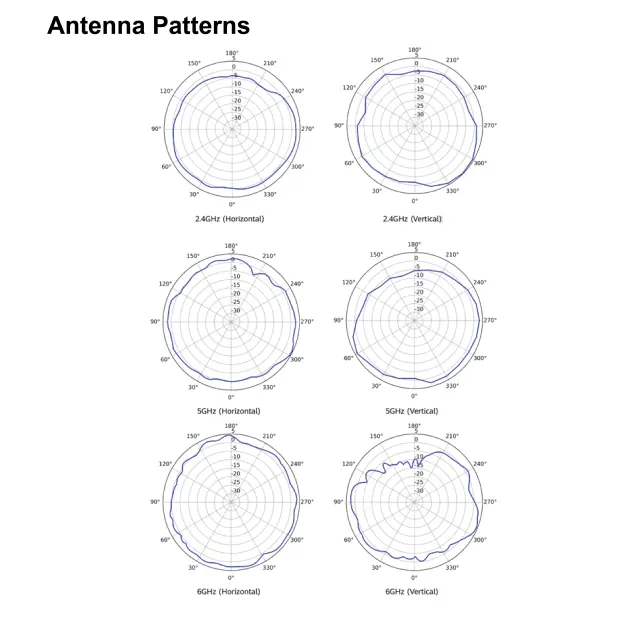

	Antenna gain	2.4 GHz: 4 dBi 5 GHz: 5 dBi 6 GHz: 5 dBi NOTE : The preceding gains are the peak gains of a single antenna.
	Maximum quantity of SSIDs	30
	Maximum number of access STAs	1024
	Maximum transmit power	2.4 GHz: 23 dBm (combined power) 5 GHz: 23 dBm (combined power) 6 GHz: 26 dBm (combined power) Note : The actual transmit power depends on local laws and regulations.

Datasheet

Download Datasheet
