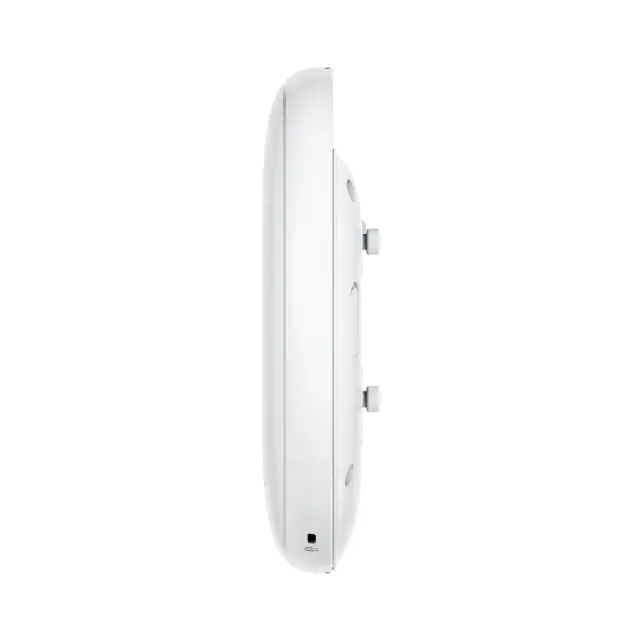

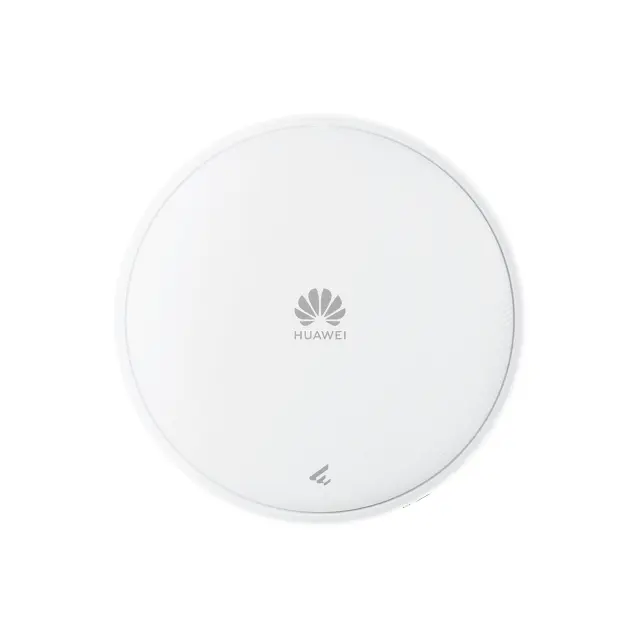

BE3600 Wi-Fi 7 dual-band 2.5GE Settled AP | AP371

AP371
- Management by HUAWEI eKit App
- Speed: 689Mbps at 2.4GHz, 2.88Gbps at 5GHz.
- MU-MIMO,Smart Antenna,Automatic Radio Calibration,Cloud Management
- Power input: DC: 12 V ± 10% OR PoE power supply: in compliance with 802.3at/af
RM1,110.00 RM2,220.00
(Excluding Taxes)
Quantity
-
+
Available , Asia
0 In Stock, Puchong
0 In Stock, Johor Bahru
0 In Stock, Penang
0 In Stock, KK
  • Description
AP371
BE3600 Wi-Fi 7 dual-band 2.5GE Settled AP

  • Management by HUAWEI eKit App

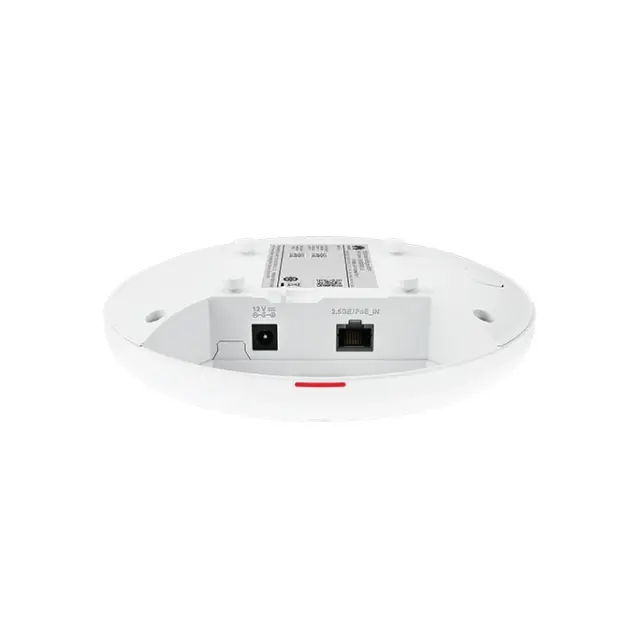

  • Port: 1 x 100M/1GE/2.5GE RJ45 port, 1 x USB port
  • Speed: 689Mbps at 2.4GHz, 2.88Gbps at 5GHz.
  • MU-MIMO,Smart Antenna,Automatic Radio Calibration,Cloud Management
  • Power input: DC: 12 V ± 10% OR PoE power supply: in compliance with 802.3at/af

Product Specifications
Technical specifications Dimensions (diameter x length) 180 mm x 35 mm (7.09 in. x 1.38 in.)
Port type 1 x 100M/1GE/2.5GE electrical port
1 x USB port
NOTE :
The 2.5GE electrical port supports PoE input.
LED indicator Indicates the power-on, startup, running, alarm, and fault states of the system.
Power specifications Power input
  • DC: 12 V ± 10%
  • PoE power supply: in compliance with 802.3at/af
NOTE :
When 802.3af power is supplied, the AP will operate with restrictions, for example the USB port is unavailable, and the details refer to the Info Finder.
Maximum power consumption 13.6 W (excluding USB)
NOTE :
The actual maximum power consumption depends on local laws and regulations.
Environmental specifications Operating temperature –10°C to +50°C (14°F to 122°F)
NOTE :
The temperature on part of the AP shell may be higher than its operating temperature upper limit. The AP's performance will not be affected as long as the shell temperature complies with the safety standards.
Storage temperature –40°C to +70°C (–40°F to +158°F)
Operating humidity 5% to 95% (non-condensing)
Altitude –60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric pressure 53 kPa to 106 kPa
Radio Specifications Antenna type Built-in smart antennas
Antenna gain 2.4 GHz: 4 dBi
5 GHz: 5 dBi
Maximum quantity of SSIDs 10
Maximum number of access STAs 128
NOTE :
The actual number of users varies according to the environment.
Maximum transmit power 2.4 GHz: 23 dBm (combined power) 5 GHz: 23 dBm (combined power)
Note :
The actual transmit power depends on local laws and regulations.
Power adjustment increment 1 dBm
