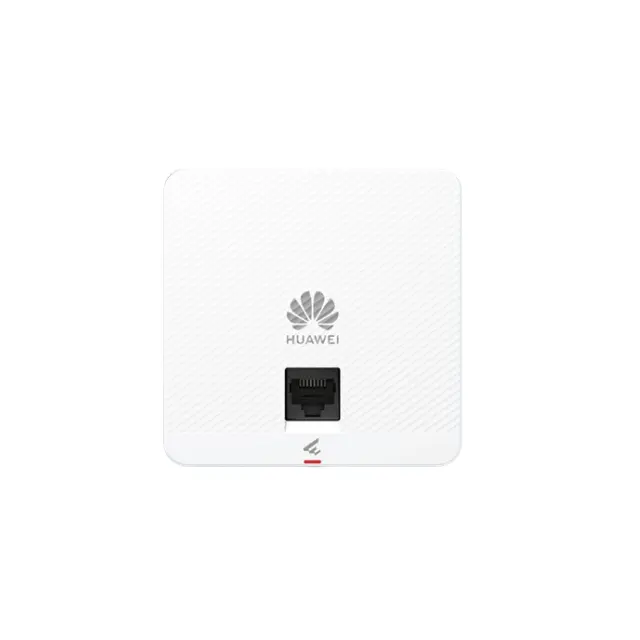

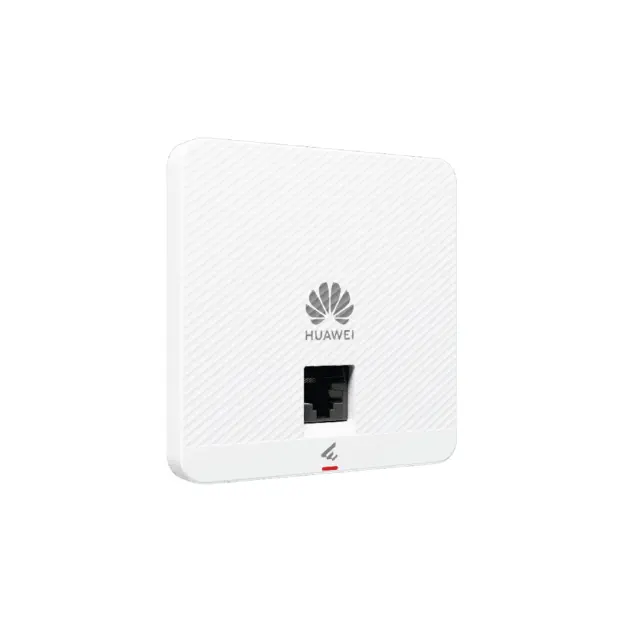

AX3000 Wi-Fi 6 Dual-band Gigabit Wall Plate AP | AP162E

Name: AX3000 Wi-Fi 6 Dual-band Gigabit Wall Plate AP | AP162E
Brand: Viskou | One-Stop Tech Solutions for a Smarter Future
SKU: 50087150
Price: 630 MYR
Availability: InStock

AP162E

- Management by HUAWEI eKit App
- Speed: 575 Mbps at 2.4GHz, 2.4Gbps at 5GHz
- PoE power supply: in compliance with IEEE 802.3af
- MU-MIMO,Smart Antenna,Automatic Radio Calibration,Cloud Management

RM630.00 ~~RM1,260.00~~

(Excluding Taxes)

Quantity

-

+

0 In Stock, Puchong

10 In Stock, Johor Bahru

2 In Stock, Penang (Perai)

7 In Stock, Penang (Gelugor)

8 In Stock, KK

Add to Favorite Items

Description

AP162E
AX3000 Wi-Fi 6 Dual-band Gigabit Wall Plate AP

Port: 1 x 100M/GE RJ45 port
Management by HUAWEI eKit App
Speed: 575 Mbps at 2.4GHz, 2.4Gbps at 5GHz
PoE power supply: in compliance with IEEE 802.3af
MU-MIMO,Smart Antenna,Automatic Radio Calibration,Cloud Management

Product Specifications

Technical specifications	Dimensions (diameter x length)	86 mm x 86 mm x 42.5 mm
	Weight	0.14 kg
	Port type	Uplink: 1 x 100M/GE electrical port Downlink: 1 x 100M/GE electrical port NOTE : The uplink GE electrical port supports PoE IN.
	LED indicator	Indicates the power-on, startup, running, alarm, and fault states of the system.
Power specifications	Power input	PoE power supply: in compliance with IEEE 802.3af
Power specifications	Maximum power consumption	9.1 W NOTE : The actual maximum power consumption depends on local laws and regulations.
Environmental specifications	Operating temperature	0°C to 40°C (From 1800 m to 5000 m, the maximum temperature of the device decreases by 1°C for every 300 m increase in altitude.) NOTE : The temperature on part of the AP shell may be higher than its operating temperature upper limit. The AP's performance will not be affected as long as the shell temperature complies with the safety standards.
	Storage temperature	–40°C to +70°C
	Operating humidity	5% to 95% (non-condensing)
	Altitude	–60 m to +5000 m
	Atmospheric pressure	53 kPa to 106 kPa

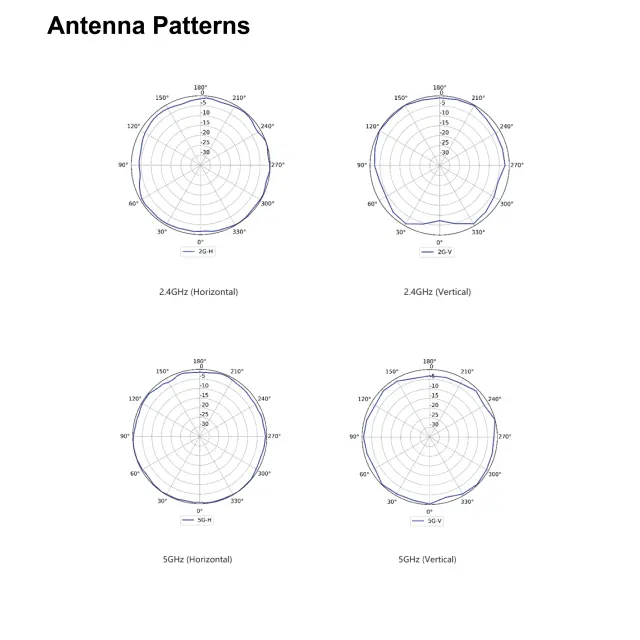

Radio Specifications	Antenna type	Built-in smart antennas
	Antenna gain	2.4 GHz: 4 dBi 5 GHz: 5 dBi Note : The preceding gains are the peak gains of a single antenna.
	Maximum quantity of SSIDs	16
	Maximum number of access STAs	128 NOTE : The actual number of users varies according to the environment.
	Maximum transmit power	2.4 GHz: 20 dBm (combined power) 5 GHz: 20 dBm (combined power) Note : The actual transmit power depends on local laws and regulations.
	Power adjustment increment	1 dBm

Datasheet

Download Datasheet
