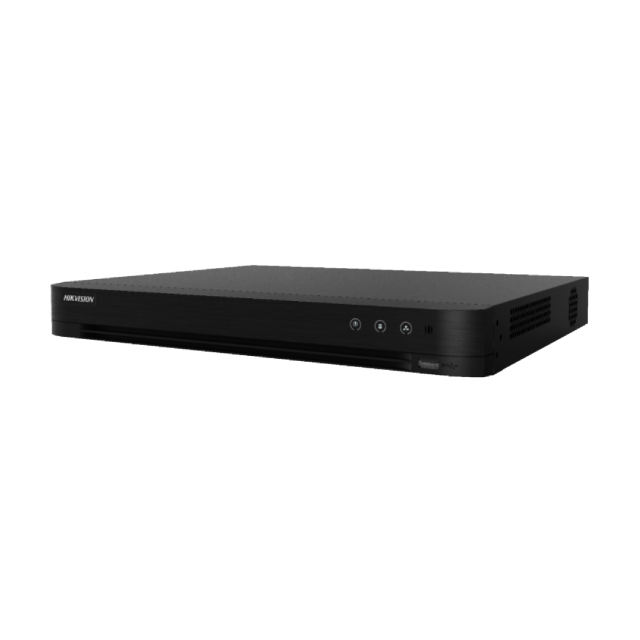

4-ch 1080p 1U H.265 AcuSense DVR | iDS-7204HQHI-M1/S

Name: 4-ch 1080p 1U H.265 AcuSense DVR | iDS-7204HQHI-M1/S
Brand: Viskou E-Shop |CCTV, Network, Door Access, Server Rack, Accessories
SKU: 300226826
Price: 412 MYR
Availability: InStock

iDS-7204HQHI-M1/S

- 4 channels and 1 HDD 1U AcuSense DVR
- Encoding ability up to 3K/5M Lite @ 12 fps
- Up to 6 network cameras can be connected
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)

RM412.00 ~~RM824.00~~

(Excluding Taxes)

Quantity

-

+

45 In Stock, Puchong

9 In Stock, Johor Bahru

5 In Stock, Penang

Add to Favorite Items

Description

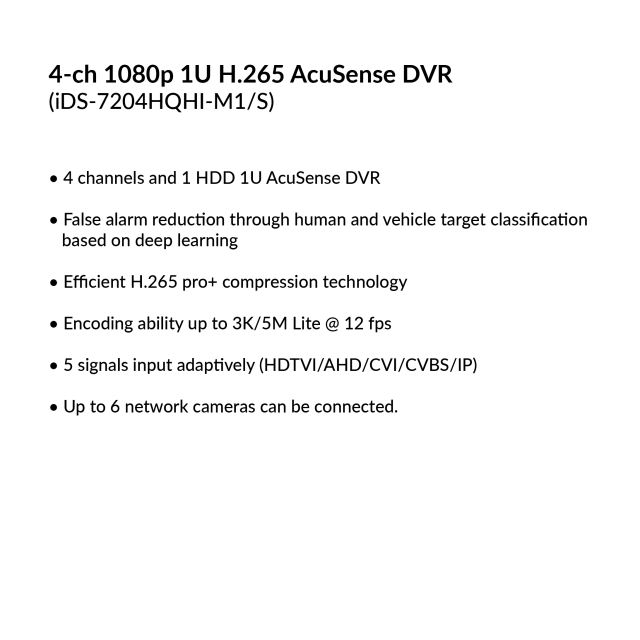

iDS-7204HQHI-M1/S
4-ch 1080p 1U H.265 AcuSense DVR

4 channels and 1 HDD 1U AcuSense DVR
Encoding ability up to 3K/5M Lite @ 12 fps
Up to 6 network cameras can be connected
Efficient H.265 pro+ compression technology
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
False alarm reduction through human and vehicle target classification based on deep learning

Specifications

Motion Detection 2.0	Human/Vehicle Analysis	Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;
Perimeter Protection	Human/Vehicle Analysis	Up to 2-ch
Facial Detection	Facial Detection and Capture	Face picture detection, face picture search
Recording	Video Compression	H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
	Encoding Resolution	When 1080p Lite mode is not enabled: 4 MP Lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled: 4 MP Lite/1080p Lite/720p Lite/VGA/WD1/4CIF/CIF
	Video Bitrate	32 Kbps to 6 Mbps
	Dual-stream	Support
	Stream Type	Video, Video & Audio
	Audio Compression	G.711u
	Audio Bitrate	64 Kbps
Video and Audio	IP Video Input	1-ch (up to 5-ch） Up to 6 MP resolution Enhanced IP mode on: 2-ch (up to 6-ch), each up to 4 Mbps Support H.265+/H.265/H.264+/H.264 IP cameras
	Analog Video Input	4-ch; BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
	Two-Way Audio	1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
	Synchronous playback	4-ch
Network	Total Bandwidth	72 Mbps
Network	Network Interface	1, RJ45 10M/100M self-adaptive Ethernet interface
Auxiliary Interface	SATA	1 SATA interface
Auxiliary Interface	Capacity	Up to 10 TB capacity for each disk
General	Power Supply	12 VDC, 1.5A
	Consumption	≤ 18 W
	Working Temperature	-10 °C to +55 °C (+14 °F to +131 °F)

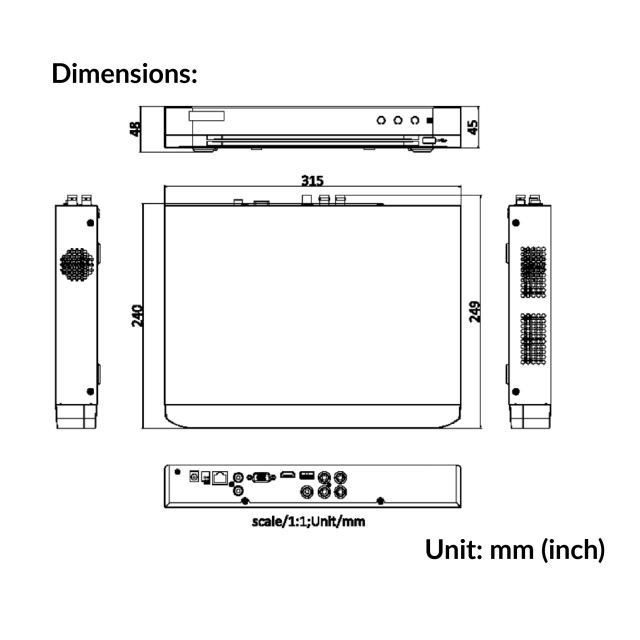

	Dimension (W × D × H)	315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
	Weight	≤ 1.16 kg (2.6 lb)
