Image Sensor
|
2 MP CMOS
|
Resolution
|
1920 (H) × 1080 (V)
|
Frame Rate
|
TVI: 1920 × 1080 @ 30 fps, 1920 × 1080 @ 25 fps
AHD: 1920 × 1080 @ 30 fps, 1080P @ 25 fps
CVI: 1920 × 1080 @ 30 fps, 1080P @ 25 fps
CVBS: PAL/NTSC
|
Lens
|
2.7 mm to 13.5 mm varifocal lens
|
Field of View
|
Horizontal FOV: 100° to 30°, vertical FOV: 52° to 17°, diagonal FOV: 116° to 34.5°
|
WDR (Wide Dynamic Range)
|
Digital WDR
|
Angle Adjustment
|
Pan: 0° to 355°, Tilt: 0° to 75°, Rotation: 0° to 355°
|
Video Output
|
Switchable TVI/AHD/CVI/CVBS
|
IR Range
|
Up to 40 m
|
Protection Level
|
IP67, IK10
|
Material
|
Main Body: Metal, Cover: Plastic
|

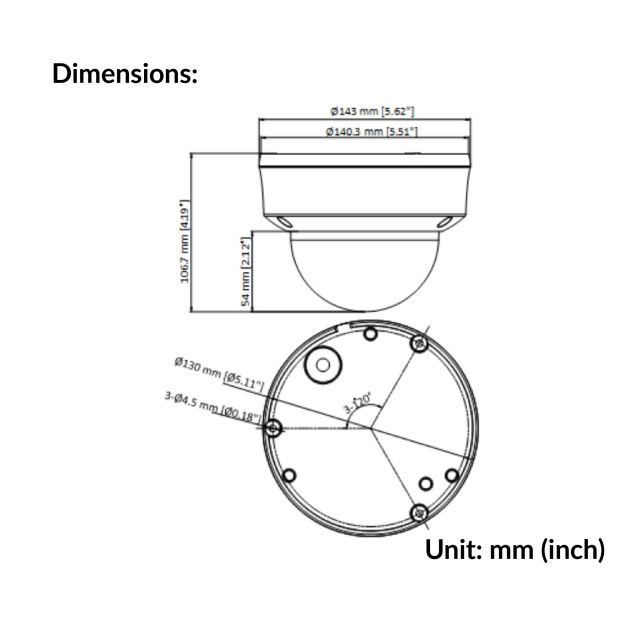

Dimension
|
Ø 143 mm × 106.7 mm ( Ø 5.62" × 4.19")
|
Weight
|
Approx. 630 g (1.39 lb.)
|
