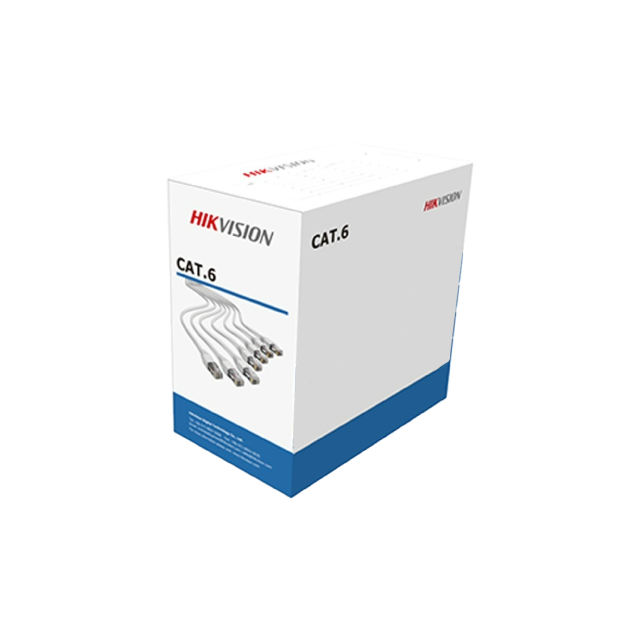

U/UTP Cat6 PVC 24AWG Cable | DS-1LN6UEC0

Name: U/UTP Cat6 PVC 24AWG Cable | DS-1LN6UEC0
Brand: Viskou | One-Stop Tech Solutions for a Smarter Future
SKU: 307400663
Price: 545 MYR
Availability: InStock

DS-1LN6UEC0

- Solid-Bare Copper conductor
- Sheath with strong mechanical properties, and high tensile and compressive strength, reducing damage during the project.

RM545.00 ~~RM1,090.00~~

(Excluding Taxes)

Quantity

1 In Stock, Puchong

0 In Stock, Johor Bahru

0 In Stock, Penang (Perai)

0 In Stock, Penang (Gelugor)

46 In Stock, KK

Add to Favorite Items

Description

DS-1LN6UEC0
U/UTP Cat6 PVC 24AWG Cable

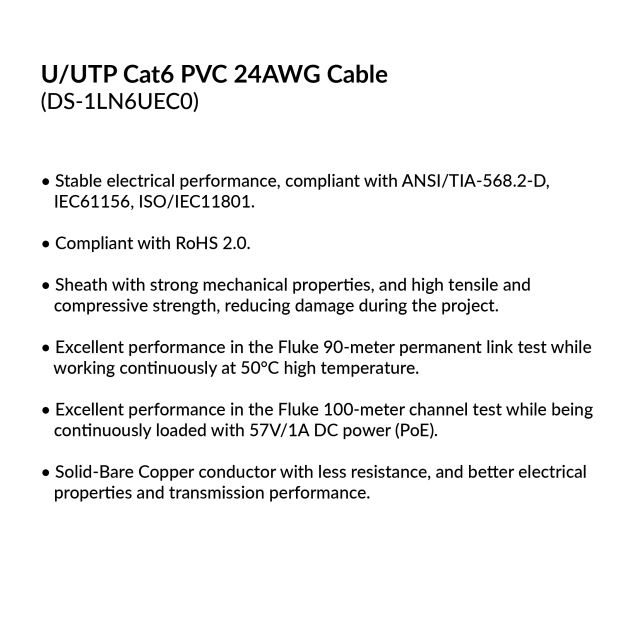

Compliant with RoHS 2.0.
Stable electrical performance, compliant with ANSI/TIA-568.2-D, IEC61156, ISO/IEC11801.
Solid-Bare Copper conductor with less resistance, and better electrical properties and transmission performance.
Excellent performance in the Fluke 90-meter permanent link test while working continuously at 50°C high temperature.
Excellent performance in the Fluke 100-meter channel test while being continuously loaded with 57V/1A DC power (PoE).
Sheath with strong mechanical properties, and high tensile and compressive strength, reducing damage during the project.

Specification

Model	DS-1LN6UEC0
Category	Cat.6
Fire resistance	No
Conductor	Material	Solid-Bare Copper (99.95%)
Conductor	Diameter	0.53 ± 0.01 mm 24AWG
Insulation	Material	HDPE
Insulation	Diameter	0.93 ± 0.05 mm
Sheath	Thickness	0.50 ± 0.05 mm
	Diameter	5.50 ± 0.50 mm
	Material	PVC
	Color	Grey、Orange
Rip-cord	Yes
Separator	Yes
Sheath physical properties	Before aging	Tensile strength ≥ 13.5 Mpa Elongation ≥ 150%
	Aging period	100°C × 24h × 10d
	After aging	Tensile strength ≥ 12.5 Mpa Elongation ≥ 125%
	Cold bend	-20 ± 2°C × 4h, 8 × cable O.D, no visible cracks
Electrical Characteristics (20°C)	1.0-250.0 MHz impedance	100 ± 15 Ω
	1.0-250.0 MHz delay skew	≤ 45 ns/100 m
	DC resistance	≤ 9.38 Ω/100 m
	DC conductor resistance unbalance	≤ 4.0%
	Package dimension	390 mm X 390mm X 220 mm
	Weight	11.9 ± 0.5 Kg
	Cable length	(305 ± 1.5) m
	Ambient temperature	-20°C to 70°C
	Operating voltage	57 V
