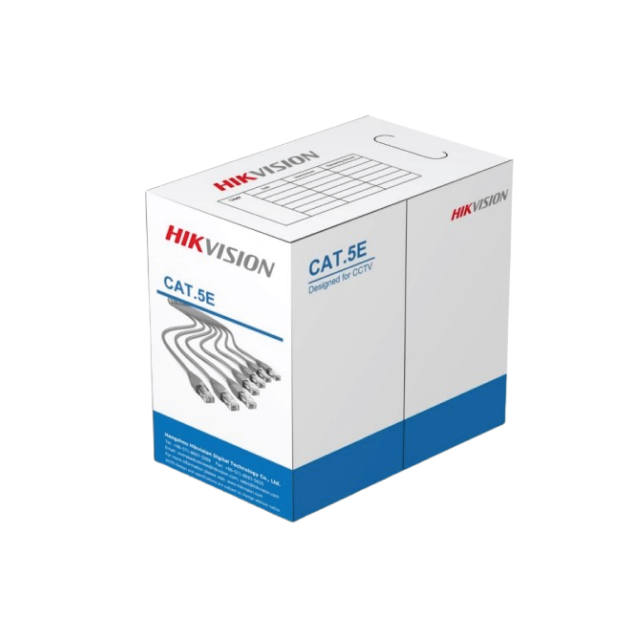

U/UTP Cat5E PVC 24AWG Cable | DS-1LN5EUEC0

Name: U/UTP Cat5E PVC 24AWG Cable | DS-1LN5EUEC0
Brand: Viskou | One-Stop Tech Solutions for a Smarter Future
SKU: 307400659
Price: 460 MYR
Availability: InStock

DS-1LN5EUEC0

- Compliant with RoHS 2.0.

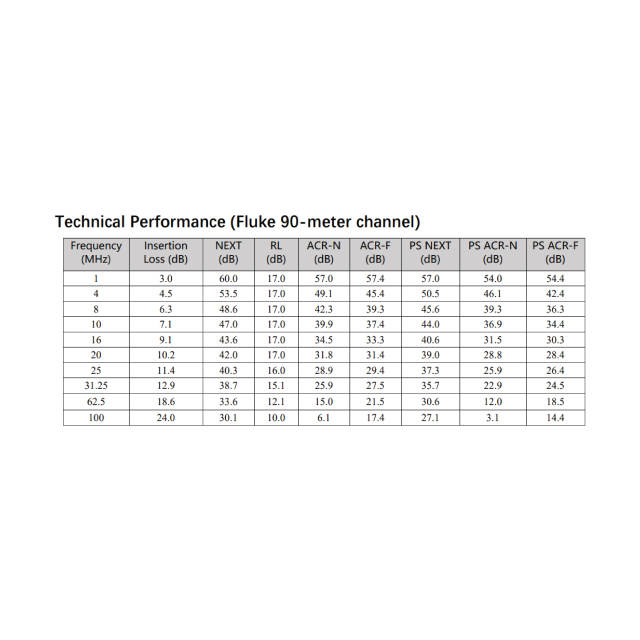

- Excellent performance in the Fluke 90-meter channel test.
- Solid-Bare Copper conductor with less resistance, and better electrical properties and transmission performance.

RM460.00 ~~RM920.00~~

(Excluding Taxes)

Quantity

1111 In Stock, Puchong

14 In Stock, Johor Bahru

4 In Stock, Penang (Perai)

37 In Stock, Penang (Gelugor)

10 In Stock, KK

Add to Favorite Items

Description

DS-1LN5EUEC0
U/UTP Cat5E PVC 24AWG Cable

Compliant with RoHS 2.0.
Excellent performance in the Fluke 90-meter channel test
Stable electrical performance, compliant with ANSI/TIA-568.2-D, IEC61156, ISO/IEC11801
Solid-Bare Copper conductor with less resistance, and better electrical properties and transmission performance
Excellent performance in the Fluke 80-meter permanent link test while working continuously at 50°C high temperature.
Sheath with strong mechanical properties, and high tensile and compressive strength, reducing damage during the project.

Specifications

Reference standard	ISO/IEC11801, ANSI/TIA-568.2-D, RoHS 2.0
Sheath physical properties	Before aging	Tensile strength ≥ 13.5 Mpa Elongation ≥ 150%
	Aging period	100°C × 24h × 10d
	After aging	Tensile strength ≥ 12.5 Mpa Elongation ≥ 125%
	Cold bend	-20 ± 2°C × 4h, 8 × cable O.D, no visible cracks

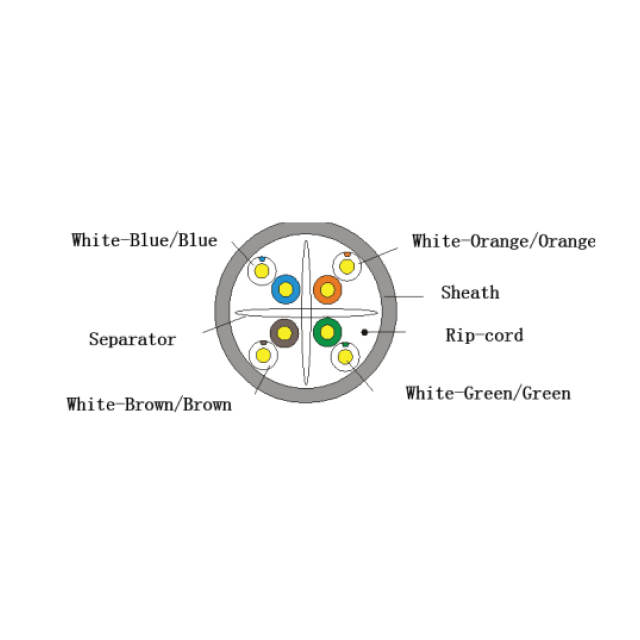

Conductor	Material	Solid-Bare Copper (99.95%)
Conductor	Diameter	0.45 ± 0.01 mm 25AWG
Rip-cord	Yes
Separator	No
Electrical Characteristics (20°C)	1.0-100.0 MHz impedance	100 ± 15 Ω
	1.0-100.0 MHz delay skew	≤ 45 ns/100 m
	DC resistance	≤ 12 Ω/100 m
	DC conductor resistance unbalance	≤ 4.0%
	Package dimension	350 mm X 350 mm X200 mm
	Weight	8.4 ± 0.5 kg
	Cable length	(305 ± 1.5) m
	Ambient temperature	-20°C to 70°C
	Operating voltage	57 V

Datasheet

Download datasheet
