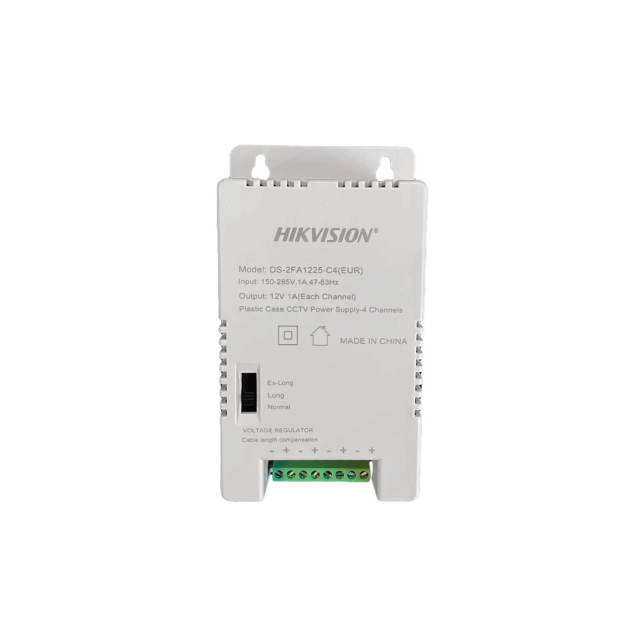

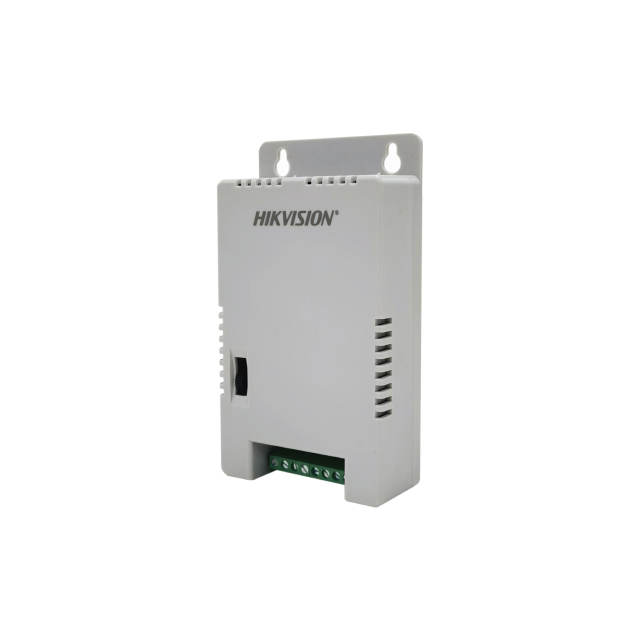

Switching Mode Power Supply | DS-2FA1225-C4

Name: Switching Mode Power Supply | DS-2FA1225-C4
Brand: Viskou | One-Stop Tech Solutions for a Smarter Future
SKU: 304901237
Price: 48 MYR
Availability: InStock

DS-2FA1225-C4

- Good EMC performance
- 48 W, 12 VDC/1 A per channel
- 150 to 285 VAC wide voltage input
- Compact size; applicable to cameras

RM48.00 ~~RM96.00~~

(Excluding Taxes)

Quantity

-

+

22 In Stock, Puchong

11 In Stock, Johor Bahru

11 In Stock, Penang (Perai)

36 In Stock, Penang (Gelugor)

1 In Stock, KK

Add to Favorite Items

Description

DS-2FA1225-C4
Switching Mode Power Supply

Good EMC performance
48 W, 12 VDC/1 A per channel
150 to 285 VAC wide voltage input
Compact size; applicable to cameras
Over current/short circuit/over voltage protection

Specifications

Input	150 to 285 VAC, 47 Hz to 63 Hz
Output	12 VDC/1 A per channel
Cable Length Compensation	Normal: 12 VDC Long: 13.5 VDC Ex-Long: 15 VDC
Operating Conditions	0°C to 40°C (32°F to 104°F), Humidity: 10% to 95% (non-condensing)
Storage Conditions	-40°C to 80°C (-40°F to 176°F), Humidity: 5% to 95% (non-condensing)
Ripple & Noise	0.15 Vp-p (150 mV)

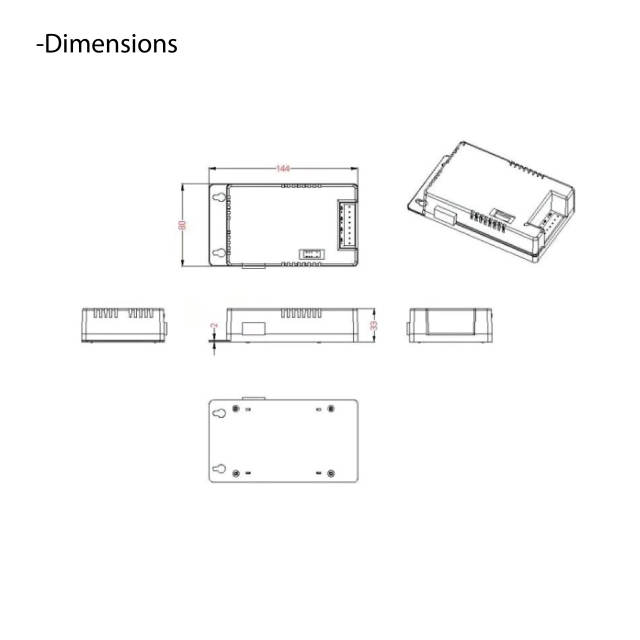

Dimension	144 mm × 80 mm × 33 mm (5.67" × 3.15" × 1.30")

Datasheet

Download Datasheet
