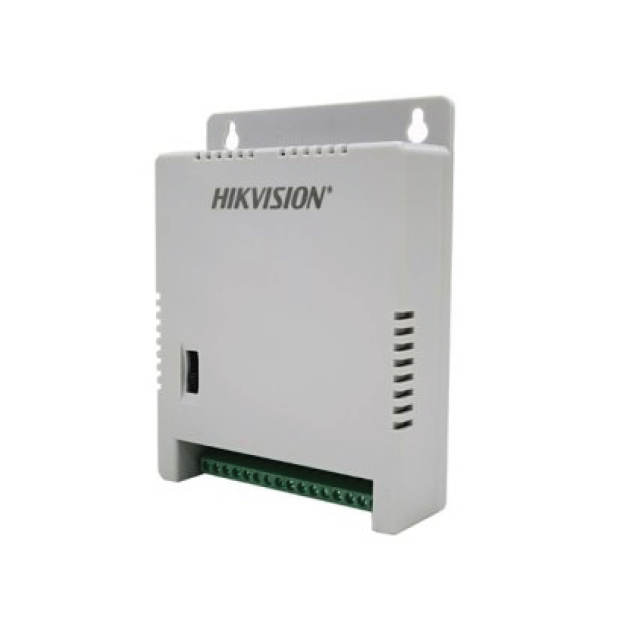

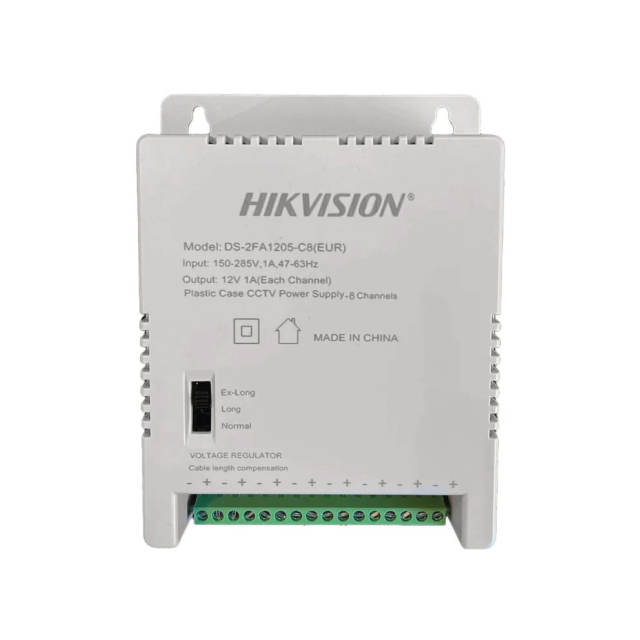

Switching Mode Power Supply | DS-2FA1205-C8

Name: Switching Mode Power Supply | DS-2FA1205-C8
Brand: Viskou | One-Stop Tech Solutions for a Smarter Future
SKU: 304901238
Price: 60 MYR
Availability: InStock

DS-2FA1205-C8

-  Good EMC performance
-  150 to 285 VAC wide voltage input
-  Compact size; applicable to cameras
- 60 W, 12 VDC/1 A max per channel, max total current is 5 A

RM60.00 ~~RM120.00~~

(Excluding Taxes)

Quantity

-

+

14 In Stock, Puchong

15 In Stock, Johor Bahru

0 In Stock, Penang (Perai)

0 In Stock, Penang (Gelugor)

5 In Stock, KK

Add to Favorite Items

Description

DS-2FA1205-C8
Switching Mode Power Supply

Good EMC performance
150 to 285 VAC wide voltage input
Compact size; applicable to cameras
Over current/short circuit/over voltage protection
60 W, 12 VDC/1 A max per channel, max total current is 5 A

Specifications

Input	150 to 285 VAC, 47 Hz to 63 Hz
Output	12 VDC/1 A per channel
Cable Length Compensation	Normal: 12 VDC Long: 13.5 VDC Ex-Long: 15 VDC
Operating Conditions	0°C to 40°C (32°F to 104°F), Humidity: 10% to 95% (non-condensing)
Storage Conditions	-40°C to 80°C (-40°F to 176°F), Humidity: 5% to 95% (non-condensing)
Ripple & Noise	0.15 Vp-p (150 mV)

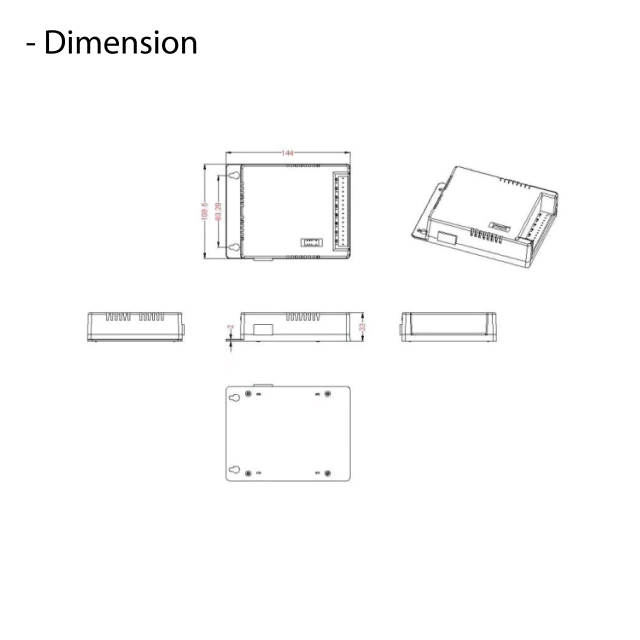

Dimension	144 mm × 109.5 mm × 33 mm (5.67" × 4.31" × 1.30")

Datasheet

Download Datasheet
