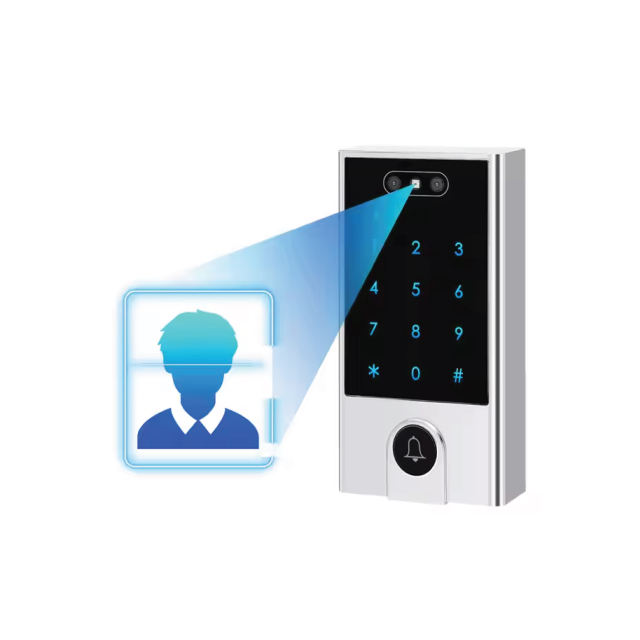

Facial Access Control(WIFI&EM+F) | XAC-MSLV6

Name: Facial Access Control(WIFI&EM+F) | XAC-MSLV6
Brand: Viskou | One-Stop Tech Solutions for a Smarter Future
SKU: VMMC000021
Price: 213 MYR
Availability: InStock

XAC-MSLV6

- One relay,5300 users.
- Card type: EM+Mifare Card.
- 2 devices can be interlocked for 2 doors
- Capacitive fingerprint sensor, touch keypad.
- User data can be transferred (except fingerprint users).

RM213.00 ~~RM426.00~~

(Excluding Taxes)

Quantity

39 In Stock, Puchong

4 In Stock, Johor Bahru

4 In Stock, Penang (Perai)

5 In Stock, Penang (Gelugor)

2 In Stock, KK

Add to Favorite Items

Description

XAC-MSLV6
Facial Access Control(WIFI&EM+F)

Product Sepcifications

Parameters	Specifications
User Capacity	5300
Face	300
Card/PIN	5000
PIN Length	4-6 digits
Operating Voltage	12-18V DC
Idle Current	≤80mA
Active Current	≤250mA
Proximity Card Reader	EM+Mifare
Radio Technology	125KHz+13.56MHz
Read Range	1-3cm
Wiring Connections	Relay output, exit button, alarm, door contact, Wiegand input/output
Relay	One (NO, NC, Common)
Adjustable Relay Output Time	0~99 Seconds (5 seconds default)
Lock Output Load	2 Amp Maximum
Wiegand Interface	EM card version: Wiegand 26~44 bits input & output (Factory default: Wiegand 26bits) Mifare card version:Wiegand 26~44 bits,56bits,58bits input & output (Factory default: Wiegand 34bits)
PIN Output	4 bits,8bits (ASCII),10 digits Virtual Number(Factory default:4bits)
	Per:IEC61000-4-2
Environment	Meets IP66
Operating Temperature	(-30°C ~ 60°C) (-22°F ~ 140°F)
Operating Humidity	0%RH ~ 98%RH
Physical	Zinc-Alloy
Colour	Sliver & Black
Dimensions	L140 x W68 x H25 (mm)

Datasheet

Download Datasheet
