6MP Smart Hybrid Light Fixed Bullet Network Camera | DS-2CD1063G2-LIU

Name: 6MP Smart Hybrid Light Fixed Bullet Network Camera | DS-2CD1063G2-LIU
Brand: Viskou | One-Stop Tech Solutions for a Smarter Future
SKU: 311323280
Price: 380 MYR
Availability: InStock

DS-2CD1063G2-LIU

- Water and dust resistant (IP67)
- Support Human and Vehicle Detection
- High quality imaging with 6MP resolution
- Smart Hybrid Light: advanced technology with long range

RM380.00 ~~RM759.00~~

(Excluding Taxes)

Quantity

-

+

1093 In Stock, Puchong

144 In Stock, Johor Bahru

282 In Stock, Penang (Perai)

205 In Stock, Penang (Gelugor)

60 In Stock, KK

Add to Favorite Items

Description

DS-2CD1063G2-LIU
6MP Smart Hybrid Light Fixed Bullet Network Camera

Water and dust resistant (IP67)
Support Human and Vehicle Detection
High quality imaging with 6MP resolution
Efficient H.265+ compression technology
Smart Hybrid Light: advanced technology with long range

Specification

Image Sensor	1/2.4" Progressive Scan CMOS
Max. Resolution	3200 × 1800
Min. Illumination	Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time	1/3 s to 1/100,000 s
Day & Night	IR cut filter
Angle Adjustment	Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Lens Type	Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV	2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127° 4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°
Lens Mount	M12
DORI	2.8 mm, D: 76 m, O: 30 m, R: 15 m, I: 7 m 4 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m
Supplement Light Type	IR,White Light
Supplement Light Range	IR: up to 30 m White Light: up to 20 m
Video Compression	Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
Video Bit Rate	32 Kbps to 16 Mbps
Audio Type	Mono sound
Audio Sampling Rate	8 kHz/16 kHz
Simultaneous Live View	Up to 6 channels
User/Host	Up to 32 users 3 user levels: administrator, operator, and user
Wide Dynamic Range (WDR)	120 dB
Day/Night Switch	Day,Night,Auto,Schedule
Image Settings	Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Ethernet Interface	1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage	-F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Basic Event	Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Power	12 VDC ± 25%, 0.41 A, max. 5 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 6.5 W
Material	Metal & Plastic

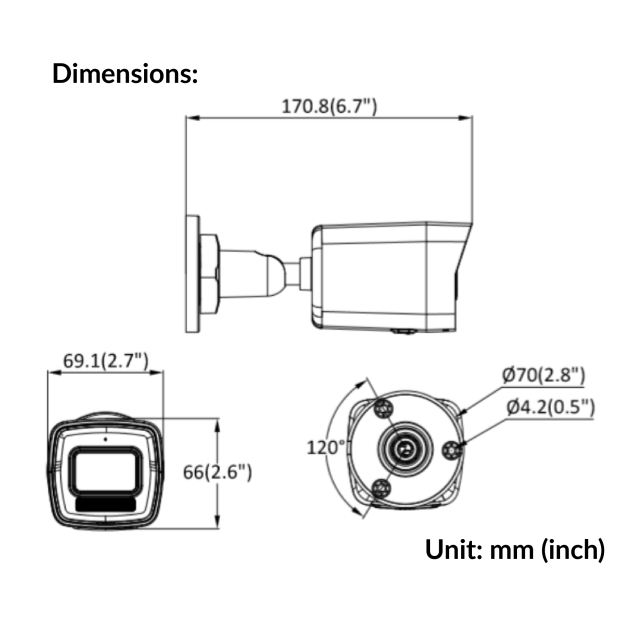

Dimension	170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7")
Weight	Approx. 285 g (0.6 lb.)
Storage Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function	Heartbeat,anti-banding,mirror,password protection,password reset via email

Datasheet

Download Datasheet
