4 Port Gigabit Unmanaged Industrial POE Switch | DS-3T0506P

Name: 4 Port Gigabit Unmanaged Industrial POE Switch | DS-3T0506P
Brand: Viskou E-Shop |CCTV, Network, Door Access, Server Rack, Accessories
SKU: 301802454
Price: 1158 MYR
Availability: InStock

DS-3T0506P

- Full gigabit port
- The backplane bandwidth is 20Gbps
- Adopt redundant dual power input design
- The maximum output power of each PoE port is 30W

RM1,158.00 ~~RM2,084.00~~

(Excluding Taxes)

Quantity

-

+

8 In Stock, Puchong

0 In Stock, Johor Bahru

0 In Stock, Penang

0 In Stock, KK

Add to Favorite Items

Description

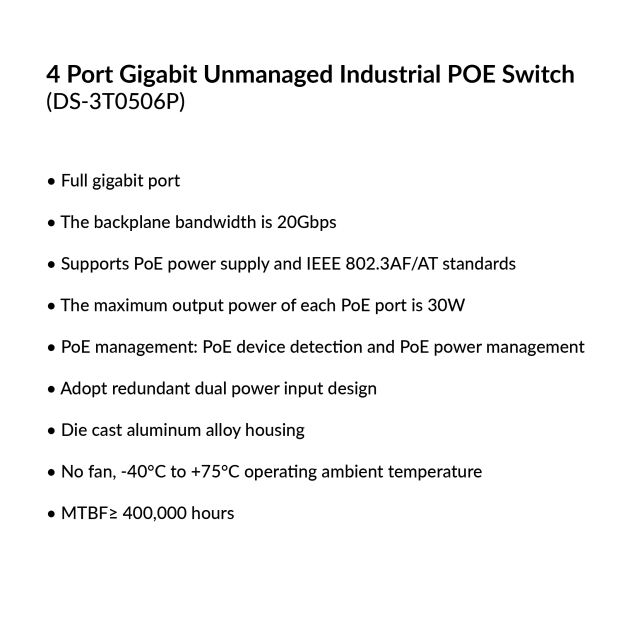

DS-3T0506P
4 Port Gigabit Unmanaged Industrial POE Switch

Full gigabit port
The backplane bandwidth is 20Gbps
Supports PoE power supply and IEEE 802.3AF/AT standards.
The maximum output power of each PoE port is 30W.
PoE management: PoE device detection and PoE power management
Adopt redundant dual power input design
Die cast aluminum alloy housing.
No fan, -40°C to +75°C operating ambient temperature.
MTBF≥ 400,000 hours.

Specification

Port Number	4 Gigabit Poe electrical ports and 2 Gigabit SFP optical ports
Port Type	RJ45 port, full duplex, MDI/MDI-X adaptive
Working Mode	Standard mode
Forwarding Mode	Store-and-forward switching
MAC Address Table	4 K
Switching Capacity	20 Gbps
PoE Port	Ports 3 to 6
Max. Port Power	30W
PoE Power Budget	120 W
Dimension (W × H × D)	52 mm × 140 mm × 110 mm
Storage Temperature	-40 °C to 85 °C (-40 °F to 185 °F)
Gross Weight	0.7kg
Power Consumption In Idle	< 10 W
Shell	Metal material, fan-free design
Power Supply	DC：48V-57V
Max. Power Consumption	120 W

Datasheet

Download Datasheet
