24-Port Gigabit L2 Managed PoE Switch | S220-24P4X

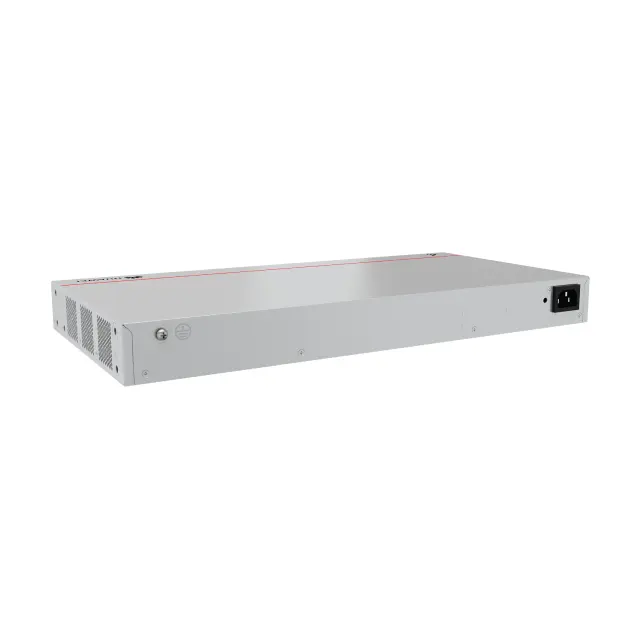

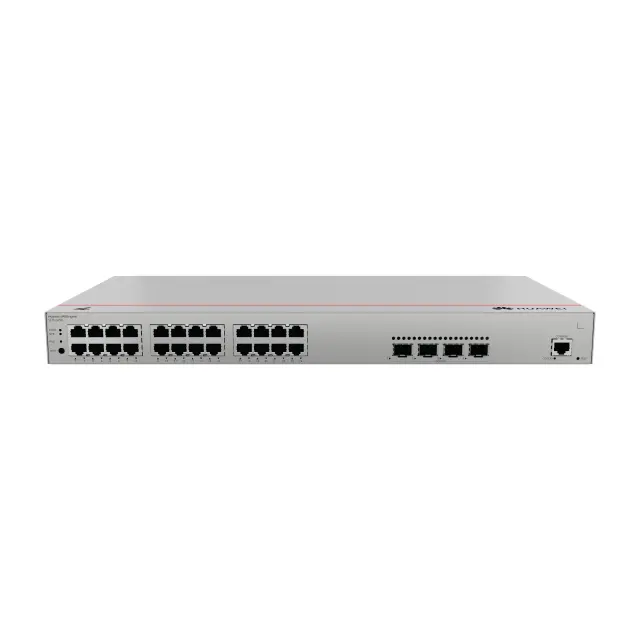

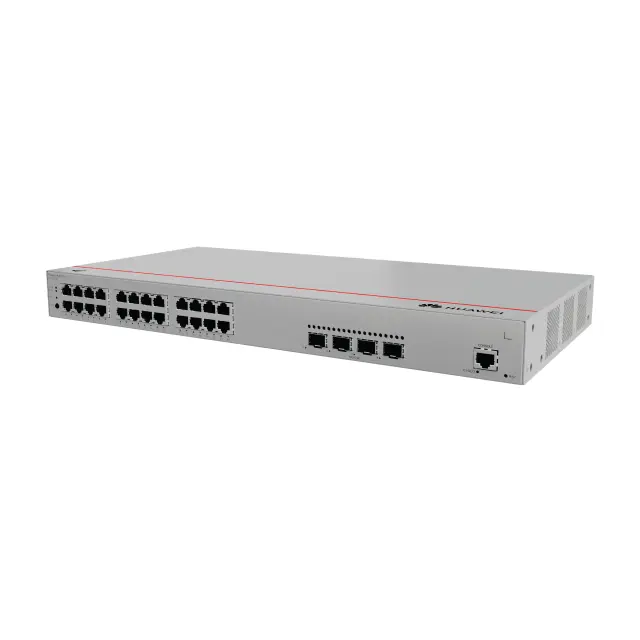

Name: 24-Port Gigabit L2 Managed PoE Switch | S220-24P4X
Brand: Viskou | One-Stop Tech Solutions for a Smarter Future
SKU: 98012376
Price: 3269 MYR
Availability: InStock

S220-24P4X

- Port: Downlink: 24 x 10/100/1000BASE-T PoE+ ports,Uplink: 4 x 10GE SFP+ ports

RM3,269.00 ~~RM6,538.00~~

(Excluding Taxes)

Quantity

43 In Stock, Puchong

0 In Stock, Johor Bahru

2 In Stock, Penang (Perai)

2 In Stock, Penang (Gelugor)

2 In Stock, KK

Add to Favorite Items

Description

S220-24P4X
24-Port Gigabit L2 Managed PoE Switch

Port: Downlink: 24 x 10/100/1000BASE-T PoE+ ports,Uplink: 4 x 10GE SFP+ ports
4094 VLANs,Ethernet ring protection,Multicast,LLDP,QoS/ACL,Cloud management Web-based management, CLI-based management, and app-based management (PoE: 400 W

Product Specifications

Switching capacity	128 Gbps
Packet forwarding rate	95 Mpps
Fixed port	24 x 10/100/1000 BASE-T ports (400W PoE +), 4*GE SFP+ ports
Uplink port	2 x 10GE SFP+ ports
Dimensions (H x W x D)	43.6 mm x 442 mm x 220 mm
Chassis height	1 U
Weight in full configuration (including packaging materials)	3.79 kg
Power module type	Built-in AC power module
Rated voltage	100 V AC to 240 V AC, 50/60 Hz
Maximum voltage	AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
Maximum power consumption	Without PoE: 44.35 W With PoE: 485.91 W (PoE: 400W)
Heat dissipation mode	Air cooling, intelligent fan speed adjustment
Noise	Sound power at normal temperature: 49.3 dB(A) Sound pressure at normal temperature: 63 dB(A) Sound pressure at normal temperature: 37.3 dB (A)
Long-term operating temperature	-5 °C to +50 °C
Storage temperature	-40 °C to +70 °C
Relative humidity	5% to 95% (non- condensing)
Service port surge protection	Common mode: ±7 kV
Power port surge protection	Differential mode: ±6 kV Common mode: ±6 kV
Heat dissipation mode	Air cooling, intelligent fan speed adjustment

Datasheet

Download Datasheet

Customer Reviews

Write a review

Sign In With:

24-Port Gigabit L2 Managed PoE Switch | S220-24P4X

Quantity

Switching capacity

128 Gbps

Packet forwarding rate

95 Mpps

Fixed port

24 x 10/100/1000 BASE-T ports (400W PoE +), 4*GE SFP+ ports

Uplink port

2 x 10GE SFP+ ports

Dimensions (H x W x D)

43.6 mm x 442 mm x 220 mm

Chassis height

1 U

Weight in full configuration (including packaging materials)

3.79 kg

Power module type

Built-in AC power module

Rated voltage

100 V AC to 240 V AC, 50/60 Hz

Maximum voltage

AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz

Maximum power consumption

Without PoE: 44.35 W With PoE: 485.91 W (PoE: 400W)

Heat dissipation mode

Air cooling, intelligent fan speed adjustment

Noise

Sound power at normal temperature: 49.3 dB(A) Sound pressure at normal temperature: 63 dB(A) Sound pressure at normal temperature: 37.3 dB (A)

Long-term operating temperature

-5 °C to +50 °C

Storage temperature

-40 °C to +70 °C

Relative humidity

5% to 95% (non- condensing)

Service port surge protection

Common mode: ±7 kV

Power port surge protection

Differential mode: ±6 kV Common mode: ±6 kV

Heat dissipation mode

Air cooling, intelligent fan speed adjustment

Without PoE: 44.35 W
With PoE: 485.91 W (PoE: 400W)

Sound power at normal temperature: 49.3 dB(A)
Sound pressure at normal temperature: 63 dB(A)
Sound pressure at normal temperature: 37.3 dB (A)

Differential mode: ±6 kV
Common mode: ±6 kV
