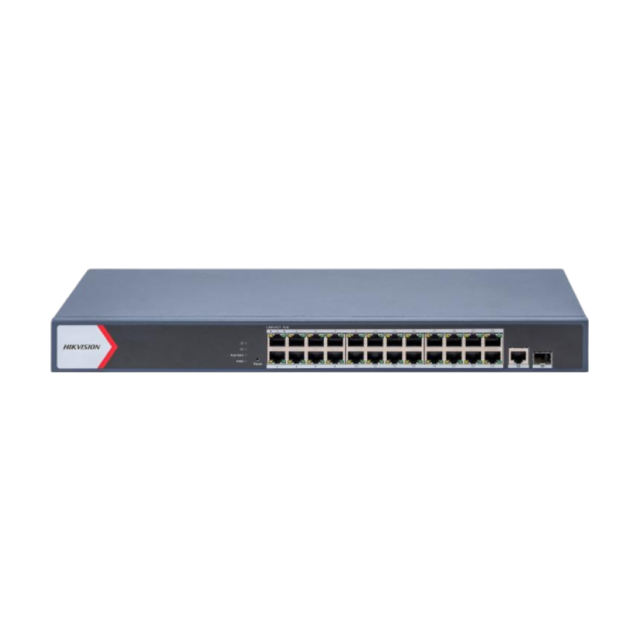

24 Port Gigabit Smart POE Switch | DS-3E1526P-EI/M

Name: 24 Port Gigabit Smart POE Switch | DS-3E1526P-EI/M
Brand: Viskou | One-Stop Tech Solutions for a Smarter Future
SKU: 301802750
Price: 1443 MYR
Availability: InStock

DS-3E1526P-EI/M

- Total PoE power budget 230 W
- Up to 300 m long-range PoE transmission
- Unified cloud management for security systems
- 24 x gigabit PoE RJ45 ports, 1 × gigabit RJ45 port, 1 x gigabit fiber optical port

RM1,443.00 ~~RM2,886.00~~

(Excluding Taxes)

Quantity

-

+

1 In Stock, Puchong

2 In Stock, Johor Bahru

8 In Stock, Penang (Perai)

5 In Stock, Penang (Gelugor)

14 In Stock, KK

Add to Favorite Items

Description

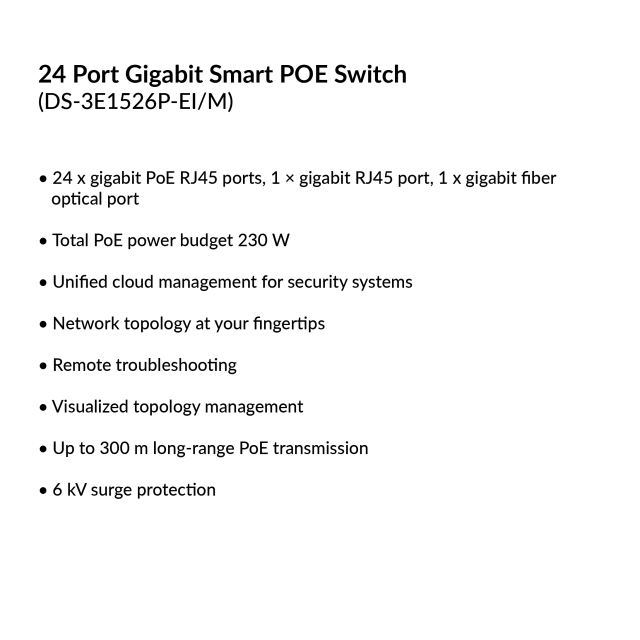

DS-3E1526P-EI/M
24 Port Gigabit Smart POE Switch

6 kV surge protection
Remote troubleshooting
Total PoE power budget 230 W
Visualized topology management
Network topology at your fingertips
Up to 300 m long-range PoE transmission
Unified cloud management for security systems
24 x gigabit PoE RJ45 ports, 1 × gigabit RJ45 port, 1 x gigabit fiber optical port

Specification

Network Parameters	Port Type	RJ45 port, full duplex, MDI/MDI-X adaptive
	Standard	IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z
	Working Mode	Standard mode (default)
	Ports Number	24 × Gigabit PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical port
	MAC Address Table	8 K
	Switching Capacity	56 Gbps
	Packet Forwarding Rate	41.66 Mpps
	Internal Cache	4.1 Mbits
PoE Power Supply	PoE Standard	IEEE 802.3af,IEEE 802.3at
	PoE Port	PoE: Ports 1 to 24
	Max. Port Power	30 W
	PoE Power Budget	230 W
Software Function	Device Maintenance	Remote upgrade, default parameters recovery, basic network parameters configuration, import and export configuration, time sync
General	Gross Weight	3.2 kg (7.05 lb)
	Dimensions (W × H × D)	440.0 mm × 220.8 mm × 44.0 mm (17.32'' × 8.69'' × 1.73'')
	Operating Temperature	0 °C to 45 °C (32 °F to 113 °F)
	Power Supply	100~240 V AC, 50/60 Hz, Max. 4 A
	Max. Power Consumption	250 W

Datasheet

Download Datasheet
