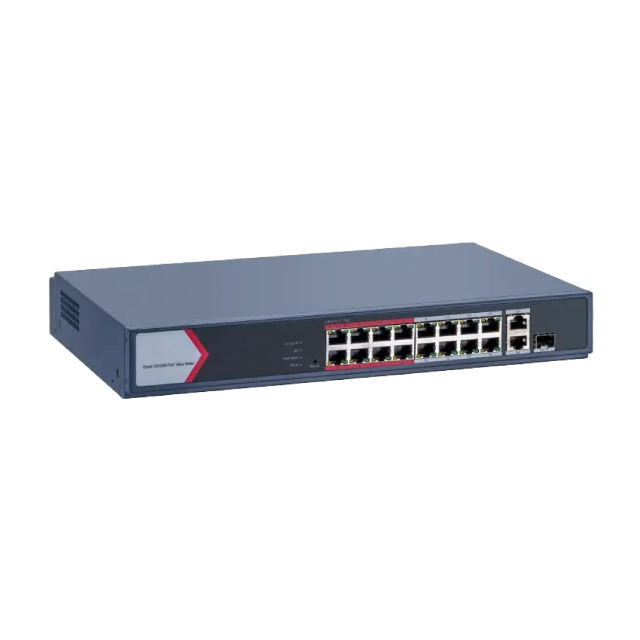

16 Port Fast Ethernet Smart POE Switch | DS-3E1318P-EI/M

DS-3E1318P-EI/M
- 6 KV surge protection for PoE ports.
- IEEE 802.3at/af standard for PoE ports.
- Network topology management, alarm push, network health monitor.
- 16 × 10/100 Mbps PoE port,1 × Gigabit combo,1 × Gigabit RJ45 port.
RM653.00 RM1,306.00
(Excluding Taxes)
Quantity
-
+
133 In Stock 42 In Stock, Puchong Warehouse
28 In Stock, Johor Bahru Warehouse
51 In Stock, Penang Warehouse
12 In Stock, KK Warehouse
0 In Stock, Warehouse 5
, Penang Warehouse
42 In Stock, Puchong
28 In Stock, Johor Bahru
51 In Stock, Penang
12 In Stock, KK
  • Description
DS-3E1318P-EI/M
16 Port Fast Ethernet Smart POE Switch
  • 16 × 10/100 Mbps PoE port,1 × Gigabit combo,1 × Gigabit RJ45 port.
  • IEEE 802.3at/af standard for PoE ports.
  • Network topology management, alarm push, network health monitor.
  • 6 KV surge protection for PoE ports.
  • AF/AT camera can reach up to 300 m in extend mode.

Specification
Ports 16 × 10/100 Mbps PoE port,1 × Gigabit combo,1 × Gigabit RJ45 port
Standard IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3ab,IEEE 802.3z
High Priority Ports Ports 1 to 8
Forwarding Mode Store-and-forward switching
Working Mode Standard mode (default),Extend mode
MAC Address Table 16 K
Switching Capacity 7.2 Gbps
Internal Cache 4 Mbits
PoE Power Pin End-span: 1/2(-), 3/6(+)
Mid-span: 4/5(+), 7/8(-)
8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
Device Maintenance Support remote upgrade, default parameter restoration, logs viewing, basic network parameter configuration, import and export configuration, and time synchronization.
Shell Metal material
Net Weight 1.8 kg (4.0 lb)
Dimensions (W × H × D) 335.00 mm × 44.50 mm × 226.00 mm (13.19'' × 1.75'' × 8.90'')
Operating Temperature 0 °C to 45 °C (32 °F to 113 °F)
Operating Humidity 5% to 95% (no condensation)
Power Supply 100-240 VAC, 50/60 Hz, Max. 2.5 A
Max. Power Consumption 150 W
Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)


Datasheet

Download Datasheet
