4 Port Fast Ethernet Smart Harsh POE Switch | DS-3T1306P-SI/HS

Name: 4 Port Fast Ethernet Smart Harsh POE Switch | DS-3T1306P-SI/HS
Brand: Viskou | One-Stop Tech Solutions for a Smarter Future
SKU: 301802344
Price: 526 MYR
Availability: OutOfStock

DS-3T1306P-SI/HS

- Network health monitor.
- Visualized topology management.
- IP40 rating with intrusion and moisture protection.
- Layer 2 features: PoE watchdog, STP/RSTP, VLAN, SNMP, QoS, ERPS, etc.

RM526.00 ~~RM1,051.00~~

(Excluding Taxes)

Quantity

0 In Stock, Puchong

0 In Stock, Johor Bahru

0 In Stock, Penang (Perai)

0 In Stock, Penang (Gelugor)

0 In Stock, KK

Add to Favorite Items

Description

DS-3T1306P-SI/HS(O-STD)

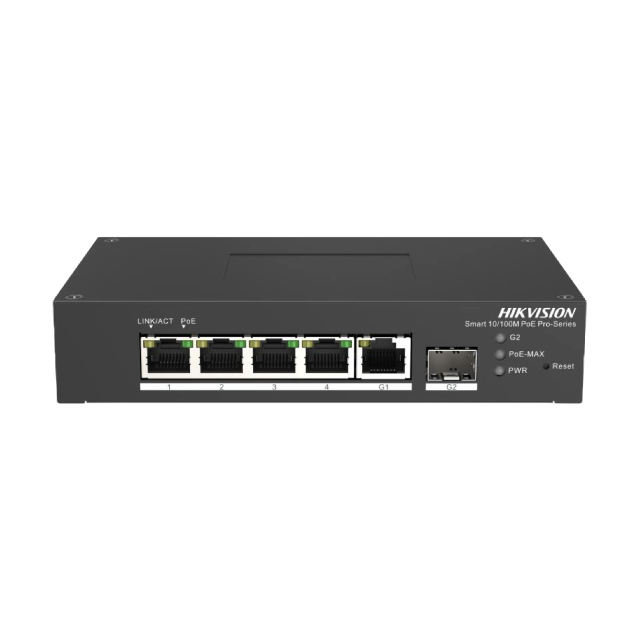

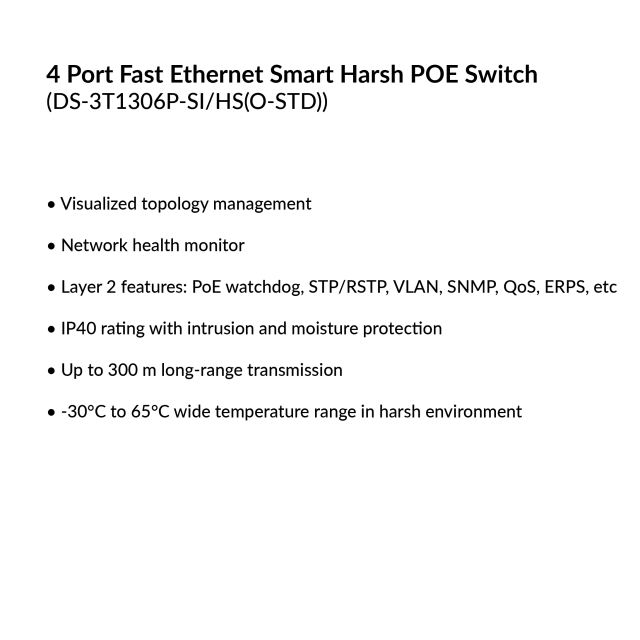

4 Port Fast Ethernet Smart Harsh POE Switch

Visualized topology management.
Network health monitor.
Layer 2 features: PoE watchdog, STP/RSTP, VLAN, SNMP, QoS, ERPS, etc.
IP40 rating with intrusion and moisture protection.
-30°C to 65°C wide temperature range in harsh environment.

Specification

Ports	4 × 10/100 Mbps PoE port,1 × 1 Gigabit RJ45 port,1 × 1 Gigabit fiber optical port
Port Type	RJ45 port,full duplex,MDIMDI-X adaptive
Standard	IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Forwarding Mode	Store-and-forward switching
Working Mode	Standard mode (default)
MAC Address Table	2 K
Switching Capacity	4.8 Gbps
Packet Forwarding Rate	3.57 Mpps
Internal Cache	1 Mbits
PoE Standard	IEEE 802.3af,IEEE 802.3at
PoE Power Pin	End-span: 1/2(-), 3/6(+) Mid-span: 4/5(+), 7/8(-) 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Port	PoE: Ports 1 to 4
Max. Port Power	30 W
PoE Power Budget	60 W
Port Configuration	Support port rate configuration, flow control, and ports enabling.
Long Range	Ports 1 to 4: up to 300 m
PoE Configuration	PoE watchdog: Ports 1 to 4 auto detect and restart the cameras that do not respond. PoE enabling: supported
Port Rate-Limiting	Rate-limiting for ingress and egress ports
Storm Control	Storm control of unknown unicast, multicast, and broadcast
Port Mirroring	Supported
Port Isolation	Ports in an isolation group cannot communicate with each other.
QoS	WRR and SP scheduling and port priority
LLDP	LLDP supported for port configuration, global configuration, and neighbour discovery
Shell	Metal material
Net Weight	0.4 kg (0.8 lb)
Dimensions (W × H × D)	158.00 mm × 101.20 mm × 31.60 mm (6.20'' × 3.90'' × 1.20'')
Operating Temperature	-30 °C to 65 °C (-22 °F to 149 °F)
Operating Humidity	5% to 95% (no condensation)
Power Supply	Power adapter: 48 VDC (working temperature: 0°C to 45°C); Grounding terminal: 48-57 VDC (working temperature: -30°C to 65°C)
Max. Power Consumption	65 W

Datasheet

Download Datasheet
