1000Base-BX WDM Bi-Directional SFP Module | TL-SM321A-2

Name: 1000Base-BX WDM Bi-Directional SFP Module | TL-SM321A-2
Brand: Viskou | One-Stop Tech Solutions for a Smarter Future
SKU: TEMPO03596
Price: 129 MYR
Availability: OutOfStock

TL-SM321A-2

- Supports Hot Swappable
- Adopts the latest standard 1000Base-BX
- Supports Digital Diagnostic Monitoring (DDM)

RM129.00 ~~RM232.20~~

(Excluding Taxes)

Quantity

-

+

0 In Stock, Puchong

0 In Stock, Johor Bahru

0 In Stock, Penang (Perai)

0 In Stock, Penang (Gelugor)

0 In Stock, KK

Add to Favorite Items

Description

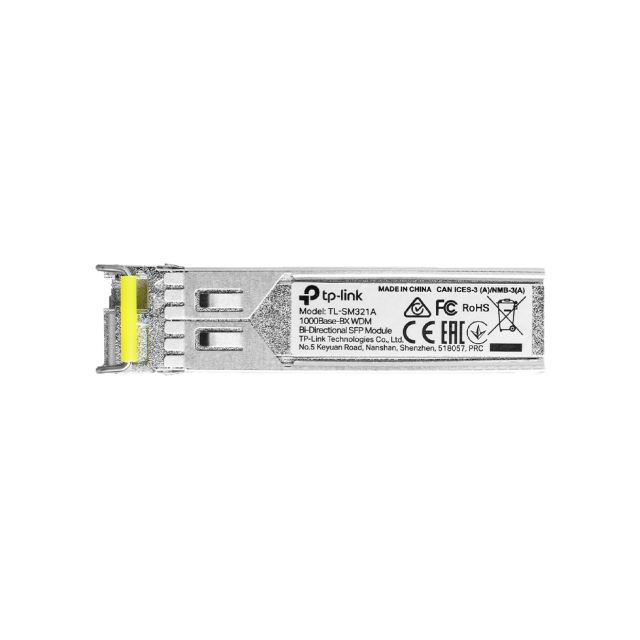

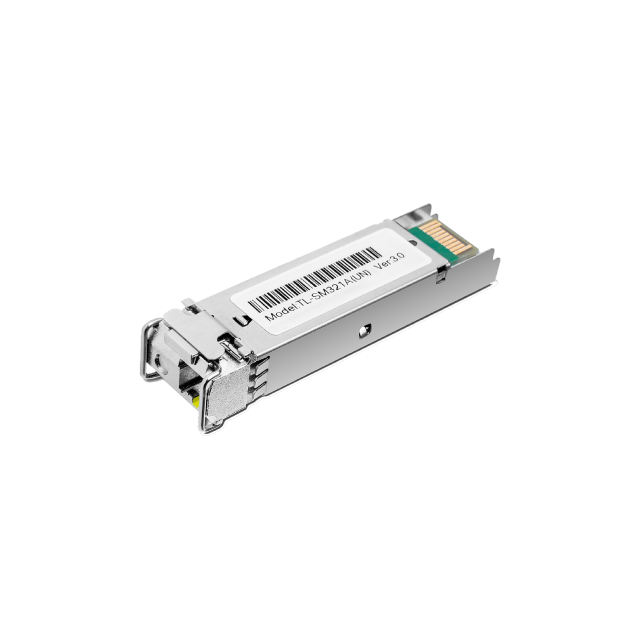

TL-SM321A-2
1000Base-BX WDM Bi-Directional SFP Module

TL-SM321A-2 is developed in accordance with the Small Form Pluggable Multi-Source Agreement (SFP-MSA). As a WDM Bi-Directional optical transceiver, TL-SM321A-2 uses an integrated LC Bi-Directional optical interface connector and the data link is up to 2 km in 9/125 μm SMF (Single-Mode Fiber).

Also, TL-SM321A-2 incorporates the Digital Diagnostic Monitoring (DDM) feature which is compatible with SFF-8472. DDM supports real-time monitoring of the transceiver, and shows parameters including the transceiver current which transmits/receives optical power and operating temperature.

TL-SM321A-2 is used for short-and medium distance fiber network in practice, and it provides fast and stable gigabit fiber connection for switches, routers, servers, etc.

Product Specifications

Standards and Protocols	IEEE 802.3z, TCP/IP
Wave Length	TX: 1550 nm RX: 1310 nm
Power Supply	3.3 V
Safety & Emission	FCC, CE
Cabel	Single-Mode Fiber
Fiber Type	9/125 μm Single-Mode
Max. Cable Length	2 KM
Data Rate	1.25 Gbps
Port Type	LC Simplex
Environment	Operating Temperature: 0–70 °C (32–158 °F) Storage Temperature: -40–85 °C ( -40–185 °F) Operating Humidity: 10–90% RH, Non-Condensing Storage Humidity: 5–90% RH, Non-Condensing

Datasheet

Download Datasheet
