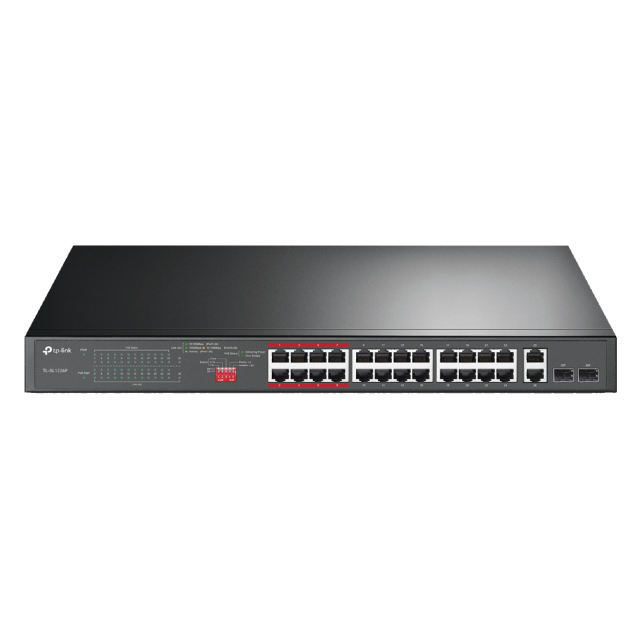

24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch |TL-SL1226P

Name: 24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch |TL-SL1226P
Brand: Viskou | One-Stop Tech Solutions for a Smarter Future
SKU: TEMPO03588
Price: 839 MYR
Availability: OutOfStock

TL-SL1226P

- High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports*
- 24× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 2× combo Gigabit SFP slots

RM839.00 ~~RM1,510.20~~

(Excluding Taxes)

Quantity

-

+

0 In Stock, Puchong

0 In Stock, Johor Bahru

0 In Stock, Penang (Perai)

0 In Stock, Penang (Gelugor)

0 In Stock, KK

Add to Favorite Items

Description

TL-SL1226P
24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch

Plug and play, with no configuration and installation needed
High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports*
Isolation Mode allows one-click client traffic separation for higher security and performance
24× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 2× combo Gigabit SFP slots
Up to 250 m data and power PoE transmission range under Extend Mode**, ideal for surveillance system
Priority Mode ensures high priority of ports 1–8 to guarantee the quality of sensitive applications like video monitor

Product Specifications

Interface	24× PoE+ 10/100 Mbps RJ45 Ports 2× 10/100/1000 Mbps RJ45 Ports 2× Combo Gigabit SFP Slots
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-X MMF, SMF
Fan Quantity	2 Fans
Physical Security Lock	Yes
Power Supply	100-240 VAC, 50/60 Hz
Packet Forwarding Rate	6.5472 Mpps
PoE+ Ports(RJ45)	Standard: 802.3at/802.3af compliant PoE Ports: Port 1 – Port 24 PoE Power Budget: 250 W
Mac Address Table	8 K
Jumbo Frame	10 KB
Switching Capacity	8.8 Gbps
Dimensions ( W x D x H )	17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
Max Power Consumption	18.32 W (220/50 Hz. no PD connected) 294 W (220/50 Hz. with 250 W PD connected)
Max Heat Dissipation	62.47 BTU/h (no PD connected) 1002.54 BTU/h (with 250 W PD connected)
